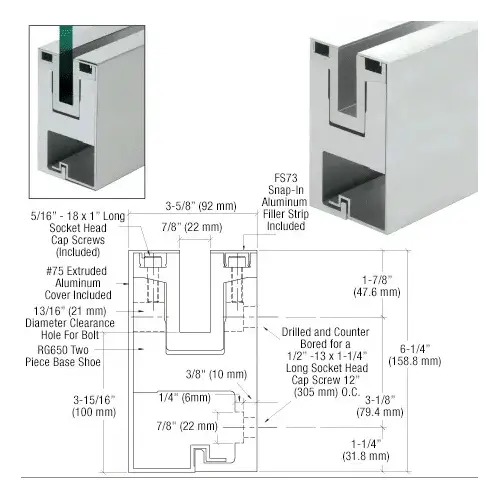

CRL Blumcraft 's RG650 Series Two Piece Fascia Mount Base Shoe System is offered in stock lengths or custom fabricated to size with or without factory installed 3/4" (19 mm) glass panels. The system permits easy glass panel installation and replacement by means of bolts. CRL Blumcraft 's Glass Railing Systems are designed to meet and exceed typical code requirements for guard rail applications.
GLASS SPECIFICATIONS: 3/4" (19 mm) Thick Glass using Wet Glaze System. Tempered Glass: Shall be 3/4" (19 mm) thick safety glass meeting the requirements of ANSI Standard 297.1 for Safety Glazing Materials and Consumer Product Safety Commission Standard 16 CFR 1201 Categories 1 and 2.
SHIPPING NOTE: Due to the difficulty in packaging and handling 144" (3.65 m) stock lengths, it is suggested that you take delivery of these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.
Product Warning:
NOTE: Use only SHCS1213X114 Socket Head Screw with this channel.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL Blumcraft RG650SA Satin Anodized RG650 Series Two Piece Fascia Mount Base Shoe
Item #: RG650SA by Blumcraft
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 6063 Alloy, T52 Temper in Three Finishes
- For 3/4" (19 mm) Monolithic Tempered Glass
- Permits Easy Glass Panel Replacement by Means of Bolts
- Railglass® Factory Controlled Bonding of Glass is Also Available
- Two Piece Mounting Base Isolates Glass Panels Against Shock of Building Movement
Hole Size
9/16" (14.3 mm)
Shipping Weight
181 lb (82.1kg)
Stock Length
144" (3.65 m)
Counterbore x Depth
7/8" x 1/4"
Center-to-Center
12" (305 mm)
Brand
Blumcraft
Finish
Satin Anodized
Material
Aluminum
Length
144
Width
3-5/8
Glazing Thickness
3/4
Drilled
Side
Finish/Color
Satin Anodized
Drill Spacing
12"
Height
6-1/4
Product Overview
CRL Blumcraft 's RG650 Series Two Piece Fascia Mount Base Shoe System is offered in stock lengths or custom fabricated to size with or without factory installed 3/4" (19 mm) glass panels. The system permits easy glass panel installation and replacement by means of bolts. CRL Blumcraft 's Glass Railing Systems are designed to meet and exceed typical code requirements for guard rail applications.
GLASS SPECIFICATIONS: 3/4" (19 mm) Thick Glass using Wet Glaze System. Tempered Glass: Shall be 3/4" (19 mm) thick safety glass meeting the requirements of ANSI Standard 297.1 for Safety Glazing Materials and Consumer Product Safety Commission Standard 16 CFR 1201 Categories 1 and 2.
SHIPPING NOTE: Due to the difficulty in packaging and handling 144" (3.65 m) stock lengths, it is suggested that you take delivery of these at any of our distribution centers. If requiring shipment, all packaging and handling concerns must be agreed to by CRL and the customer prior to shipping. All shipping arrangements will be documented on your quotation for your signed approval.
Product Warning:
NOTE: Use only SHCS1213X114 Socket Head Screw with this channel.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
