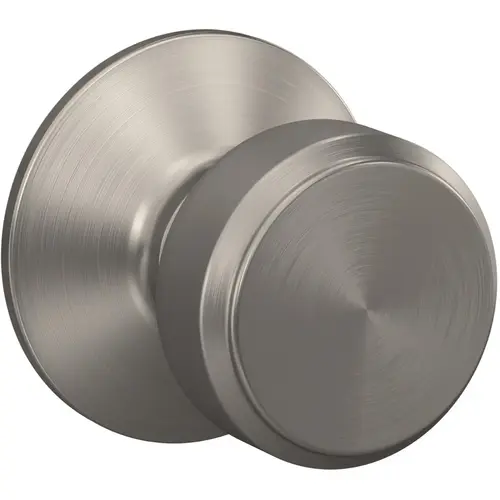

Schlage Residential F10 BWE 619 F10BWE619 16-080 10-027 Bowery Passage - Satin Nickel
Item #: F10 BWE 619 by Schlage Residential
UPC #: 43156450435
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Constructed from high quality materials with both security and durability in mind
- This knobset can be used for left or right handed applications
- Quality Materials and Construction for Exceptional Security
- Applications: Residential single- and multi-family doors
- Easy 3-Step Installation, Only a Screwdriver Needed
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Lifetime Mechanical & Finish Warranty
- Quality Finishes Coordinate with Plumbing and Lighting
- U.L. Listed: Locks for up to three-hour fire doors available
- Hall/ Closet (Passage) Function - - Both Knobs/Levers Always Unlocked
- Certified Commercial Grade 2
- Graded Best in Residential Security, Durability, and Finish
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
Finish
Satin Nickel
Function
Passage/Hall/Closet
Series
F Series
Design
Bowery Knob
Strike
Full Lip 2-1/4 Inch, Radius Corner
Backset
2-3/8 Inch or 2-3/4 Inch
Color
Satin Nickel Plated Clear Coated
Color Code
619/US15
Grade
ANSI/BHMA Grade 2
Finish Description
Satin Nickel
Knob style
BWE-Bowery
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Handing
Reversible
Door Thickness
1-3/8" to 1-3/4"
Knob Diameter
2.2500
Bore Size
2.1250
Included Components
Passage levers, roses, latch, strike, mounting hardware
Product Material
Zinc
Box Length
7.0000
Box Width
6.0000
Box Height
3.2500
Height
3.25
Length
8.13
Width
4.37
Hazardous Material
No
Country Origin Code
MX
For Door Thickness
1-3/8" to 1-3/4"
Strike Size
1-5/8 x 2-1/4 Inch
Strike Number
10-027
Manufacturer Parent
Allegion
Faceplate Dimension
1" x 2-1/4"
Door Edge Bore
1 Inch
Knob Style Family
Round Flat Knob
Latch Type
Spring
Function Description
Latch retracted by knobs/levers at all times
ANSI Function
F75
Sub-Series
F10-BWE
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
ADA Compliant
No
Door Cross Bore
2.125 Inch
Product Height
2-3/4 Inch
Application
Residential Single and Multi-Family Doors
Box Dimensions (L x W x H)
3.25x6x7"
Function Family
Passage/Hall/Closet
Standards
ANSI/BHMA A156.39-2015; UL Listed
Product Projection
2-11/32 Inch
Features
Non-Locking Ideal For Closets And Rooms Where Locking Is Not Needed; Easy 3-Step Installation, Only A Screwdriver Needed; Quality Materials And Construction For Exceptional Security; Quality Finishes Coordinate With Plumbing And Lighting
Strike Type
Radius, Full Lip
Bolt Throw
1/2 Inch
Warranty
Limited Lifetime Mechanical and Finish Warranty
Strike Name
Round Corner Full Lip
Finish Family
Satin Nickel
Collection
Bowery
Package Height
3"
Package Length
8"
Package Width
4.5"
Item Weight
1.45 lbs
Product Overview
The Schlage Bowery Knob Hall and Closet Lock in Satin Nickel is perfect for use on doors where locking is not needed. The Bowery Knob's clean lines and minimalist design give it a futuristic look that is as modern as it is stylish – especially when wrapped in our versatile Satin Nickel finish. Plus, it's been designed and tested with strength and durability in mind.
