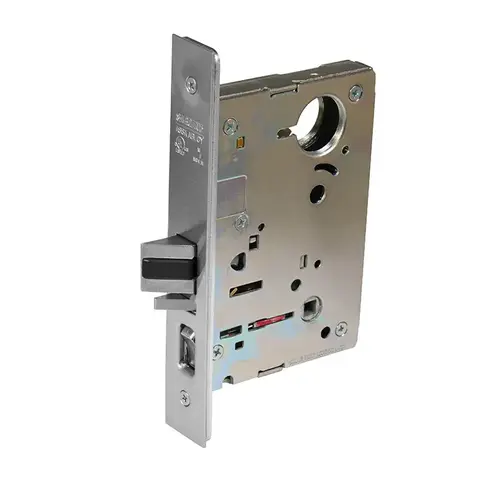

Sargent BP-8237 26 Classroom Mortise Lock Body
Item #: BP-8237 26 by Sargent
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Aesthetic design. Many escutcheon and lever styles available to match a wide range of styles
- available with push/pull trim, perfect for hospital applications
- Far Exceeds ANSI/BHMA A156.13 Series 1000 Grade 1 and Security Grade 1. Meets various higher security detention standards such as ASTM impact for deadbolt x latchbolt (Level 1) and latchbolt(Level 3) components
- Exceeds cycle testing requirements by 14 times the ANSI/BHMA A156.13 Grade 1 Standard
- Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life
- Latchbolt is stainless steel with 3/4" projection one piece anti-friction reversibile latch
- Through-bolted lever trim for increased security
- Torx® and spanner screws
- Security key systems available (Signature, Keso, KesoF1, and XC)
- ANSI/BHMA certified
- Meets A117.1 Accessibility Code
- UL and UL listed to Canadian safety standards
- Meets positive pressure requirements UL 10C and UBC 7-2 (1997)
- California State Reference Code
Color
Bright Chrome
Function
37-Classroom
Package Volume
227.6367188
Strike Number
82-0110
Thickness
1-3/4"
ANSI Function
F05 - Classroom
Hand
Field Reversible
Grade
Grade 1
Fire Rated
2 Hours {B}
Special Marks
Fire rated 2 Hours {B}
Strike Width
1-1/4"
Lock Face Size
8" x 1-1/4"
Application
Lockbody Only
Package Qty
1
Package Height
4.375"
Screws
Combination
Package Width
5.625"
Bolt Protection
3/4" Latch
Color Code
625/US26
Strike Type
ASA
Origin
USA
BAA Qualified
Yes
Base Material
Brass or Bronze
Strike Height
4-7/8"
Package Length
9.25"
Product Overview
Classroom Mortise Lock Body
