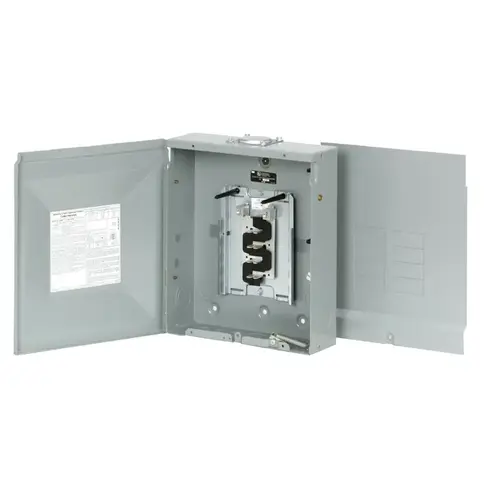

Eaton BR816L125RP BR Load Center, 125 A, 8 -Space, 16 -Circuit, Main Lug, NEMA 3R Enclosure, Plug Mounting Light Gray
Item #: BR816L125RP by Eaton Corporation
UPC #: 786676001472
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- NEMA 3R enclosure for outdoor use
- Larger knockout provides easier installation and time savings
- Top or bottom feed, straight-in wiring saves labor and material, one panel for either top or bottom applications
- Accepts Type BR Duplex and Quadplex Breakers
- Type BR sup-panel
- 2/0 lug easily removable and can be installed in any location on the neutral bar
- Type BR AFCI breakers, compact design for easier wiring and improved wireway access, optional LED indicates one of six trip codes for circuit diagnostics, provides a clean gutter space
- Excellent conductivity and corrosion resistance, copper bus options available
- Drywall marking on enclosure - indicates proper mounting depth for flush applications
- Tangential center knockout, easier installation for conduit applications
- Commercial-grade main breaker, 25 kAIC series rated main breaker for great protection
- Neutral bus (strap) is easily removable for sub-panel applications
- Bonding Z-strap provides easy field conversion for service entrance applications
Voltage
120/240
Mounting Type
Plug
Number of Outlets
0
Warranty
10 years
Amperage
125 Amp
Phase
1
Manufacturer Warranty
10 years
Certifications and Listings
ANSI Certified, UL Listed
Indoor/Outdoor
Outdoor
Load Center Type
Main Lug
Load center width (in.)
11.0
Maximum Amperage
125
Maximum Voltage
120/240 Volt
Number of Circuits
16
Number of Phases
1
Number of Spaces
8
Pack Size
1
UNSPSC
39121101
Packaging Type
Boxed
Indoor or Outdoor
Outdoor
Breakers Included
No
Circuit Protection Type
Main Lug
Defective Code
A
Each Weight
9.699 LB
Hazardous Material
No
Maximum Number of Circuits
16 circuits
Returnable
Yes
Velocity
X
Alternative UPC
786676001472
Product Type
Main Lug Load Center
Volts
240 V
Depth
3.56"
Width
5.00
UL Listed
Yes
Height
3.50
AMPS
125 amps
Length
11.90
ECCN
EAR99
Country Origin Code
US
Color
Light Gray
Bus Bar Material
Aluminum
Breaker/Load Center Type
Main Lug
Application
For use as service equipment
Enclosure Type
NEMA 3R
Current Rating
125 A
Cable Size
14 to 1 AWG
Interrupt Rating
10 kA
Nomenclature
BR816L125RP 125A MAINLUG PANEL
Wiring Configuration
3-wire
Wire Size
#14 To #1
Width (in)
11
Depth (in)
3.56
Height (in)
13
Certification
UL Listed
Series
BR
Mount Type
Surface
Max Number of Poles
16
Material
Aluminium
For Use With
Type BR breakers
Package Quantity
1
ADA Compliant
No
Circuit Breaker Type
Type BR Circuit Breaker
NEMA Rating
3R
Features
Tin Plated Aluminum Bus
MADE IN THE USA
Yes
Recommended Environment
Outdoor
Electrical Box Type
Load Center
Assembled Product Depth
3.56 in.
Assembled Product Height
13 in.
Assembled Product Width
11 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Product Overview
LOADCNTR MAIN LUG BR G60 125A
Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
