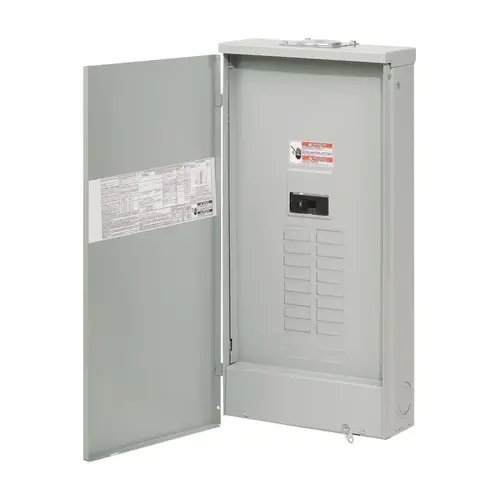

Eaton BR2040B200R BR 200 Amp 20 Space 40 Circuit Outdoor Main Breaker Loadcenter with Cover Gray

Item #: BR2040B200R by Eaton Corporation

UPC #: 786676445757

See reviewsSee reviews
See reviews summary
In Stock

$445.52

/each
SAVE UP TO 44.55
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 30 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Voltage

120/240

Mounting Type

Surface

Number of Outlets

0

Warranty

10 years

Certifications

UL

Amperage

200 Amp

Phase

1

Manufacturer Warranty

10 years

Certifications and Listings

ANSI Certified, UL Listed

Indoor/Outdoor

Outdoor

Load Center Type

Main Breaker

Load center width (in.)

14.31

Maximum Amperage

200

Maximum Voltage

120/240 Volt

Number of Circuits

40

Number of Phases

1

Number of Spaces

20

Pack Size

1

UNSPSC

39121101

Height

29-1/8"

AMPS

200 amps

Volts

120/240 V

Depth

5-3/16"

Width

14-5/16"

UL Listed

Yes

Packaging Type

Boxed

Indoor or Outdoor

Outdoor

Breakers Included

Yes

Circuit Protection Type

Main Breaker

Defective Code

A

Each Weight

33.000 LB

Hazardous Material

No

Maximum Number of Circuits

40 circuits

Returnable

Yes

Velocity

C

Alternative UPC

786689059255

Product Type

Main Breaker Load Center

Wire Size

#2 AWG to 300 kcmil

Certification

UL Listed

Enclosure Type

Raintight

Series

BR

Mount Type

Flush or Surface

Max Number of Circuits

40

Product Overview

Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The BR2040B200R is an outdoor 200 Amp main breaker with 20 spaces and 40 circuits.

  • Amperage rating: 200
  • Bus material: aluminum
  • Rated NEMA 3R for outdoor use
  • Feed type: bottom or top which allows for straight-in wiring that saves labor and material
  • Interrupt rating: 25 kAIC
  • Mounting: combination
  • Number of circuits: 40
  • Number of spaces: 20
  • Phase: single-phase
  • Tangential center knockout easier installation for conduit applications
  • 2/0 lug easily removable and can be installed in any location on the neutral bar
  • Neutral bus (strap) is easily removable for sub-panel applications
  • Bonding Z-strap provides easy field conversion for service entrance applications
  • Twin neutral bars minimum 150% neutral capacity
  • Steel back pan provides solid and reliable breaker mounting-single piece design for stability and durability
  • Single keyhole mounting - 1 keyhole at the top and bottom provides easier mounting and leveling
  • Used with: type BR breakers
