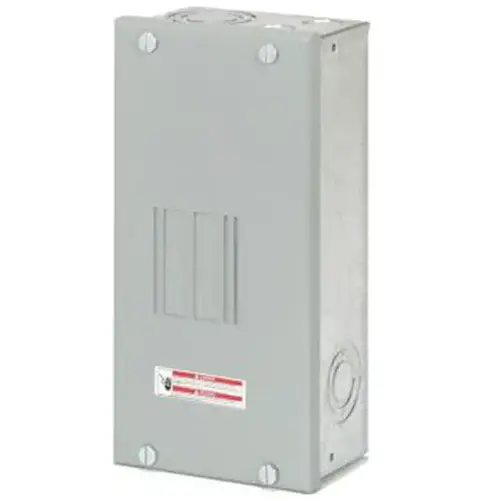

Eaton BR24L70SP BR Load Center, 70 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 1 Enclosure, Surface Mounting Light Gray
Item #: BR24L70SP by Eaton Corporation
UPC #: 786676001670
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Will accept duplex or quadplex breakers
- Larger knockout provides easier installation and time savings
- 70 Amp maximum sub-panel
- Top or bottom feed, straight-in wiring saves labor and material, one panel for either top or bottom applications
- Will accept 2 poles for full size breakers
- 2/0 lug easily removable and can be installed in any location on the neutral bar
- Type BR AFCI breakers, compact design for easier wiring and improved wireway access, optional LED indicates one of six trip codes for circuit diagnostics, provides a clean gutter space
- Excellent conductivity and corrosion resistance, copper bus options available
- Drywall marking on enclosure - indicates proper mounting depth for flush applications
- Tangential center knockout, easier installation for conduit applications
- Commercial-grade main breaker, 25 kAIC series rated main breaker for great protection
- Neutral bus (strap) is easily removable for sub-panel applications
- Bonding Z-strap provides easy field conversion for service entrance applications
Voltage
120/240
Number of Outlets
0
Warranty
10 years
Certifications
Made in the USA, UL
Amperage
70 Amp
Phase
1
Certifications and Listings
ANSI Certified, UL Listed
Indoor/Outdoor
Indoor
Load Center Type
Main Lug
Load center width (in.)
4.5
Maximum Amperage
70
Maximum Voltage
120/240 Volt
Number of Circuits
4
Number of Phases
1
Number of Spaces
2
Pack Size
1
Height
3.40
AMPS
70 amps
Mounting Type
Surface
Volts
120/240 V
Depth
3"
Width
5.40
UL Listed
Yes
Packaging Type
Boxed
Indoor or Outdoor
Indoor
Breakers Included
Yes
Circuit Protection Type
Main Lug
Defective Code
A
Each Weight
3.800 LB
Hazardous Material
No
Maximum Number of Circuits
4 circuits
Returnable
Yes
Sub Brand
Cutler-Hammer
Velocity
C
Product Type
Main Lug Load Center
UNSPSC
39121101
ECCN
EAR99
Country Origin Code
US
Length
10.60
Color
Light Gray
Bus Bar Material
Aluminum
Breaker/Load Center Type
Main Lug
Application
For use as service equipment
Enclosure Type
NEMA 1
Current Rating
70 A
Cable Size
8 to 2 AWG
Interrupt Rating
10 kA
Nomenclature
BR24L70SP MAIN LOAD CNTR 70A
Wiring Configuration
3-wire
Wire Size
#8 To #2
Width (in)
4.5
Depth (in)
3
Height (in)
9.44
Certification
UL Listed
Series
BR
Mount Type
Surface
Max Number of Poles
4
Material
Aluminium
For Use With
Service entrance equipment
Package Quantity
1
Mounting Location
Surface
ADA Compliant
No
Circuit Breaker Type
Other
NEMA Rating
1
Features
Single keyhole mounting one keyhole at the top and bottom provides easier mounting and leveling
MADE IN THE USA
Yes
Recommended Environment
Indoor, Outdoor
Electrical Box Type
Load Center
Assembled Product Depth
3.88 in.
Assembled Product Height
23 in.
Assembled Product Width
14.31 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Product Overview
LOADCNTR MAIN LUG BR INDR 70A
Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
