This 3/4" (19 mm) tall profile CRL Deep U-Channel is used for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" and 1/2" (10 and 12 mm) thick glass are available, and are individually wrapped to protect the finish. The 3/4" (19 mm) tall profile Deep U-Channel can be used also as the top channel in installations where the glass must be inserted into the top, then lowered into the Regular U-Channel used at the bottom of the enclosure. 144" (3.66 m) stock length.
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

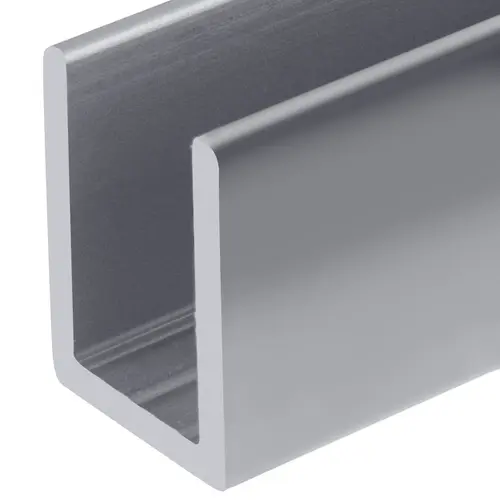

CRL SDCD3812BA Brite Anodized Frameless Shower Door Aluminum Deep U-Channel for 3/8" Thick Glass - 144" Length
Item #: SDCD3812BA by CR Laurence
See reviewsSee reviews
In Stock
$61.09
/stock lengthSAVE UP TO 6.11
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- End Caps Offered to Conceal Ends of Channel
- Deep Pocket Does Excellent Job of Securing Fixed Panels of Glass
- May Be Used Alone or with Regular Depth U-Channel
- Popular 144" (3.66 m) Stock Length
- Wet Glazed with Clear Silicone to Secure Glass
Height
3/4 in (19 mm)
Thickness
.080 in (2.03 mm)
Length
144
Finish
Brite Anodized
Material
Aluminum
Glazing Thickness
3/8
Profile
Deep
Finish/Color
Brite Anodized
Width
9/16
Glazing Pocket Width (Inches)
13/32
Slot Opening (Inches)
13/32
Length (Inches)
144
Height (Inches)
3/4
Width (Inches)
9/16
Glazing Pocket Width
13/32
Product Overview
This 3/4" (19 mm) tall profile CRL Deep U-Channel is used for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" and 1/2" (10 and 12 mm) thick glass are available, and are individually wrapped to protect the finish. The 3/4" (19 mm) tall profile Deep U-Channel can be used also as the top channel in installations where the glass must be inserted into the top, then lowered into the Regular U-Channel used at the bottom of the enclosure. 144" (3.66 m) stock length.
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
