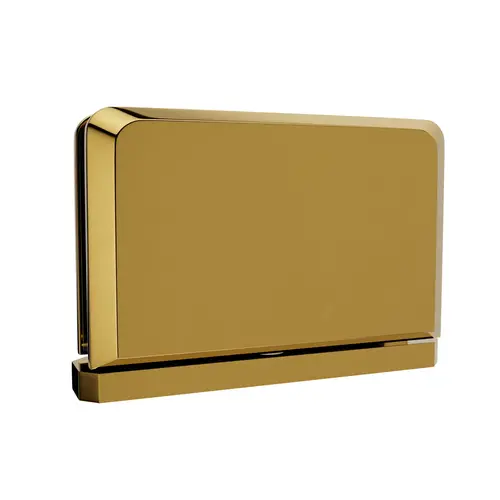

Glass To Curb Mount Beveled Pivot Hinge Bottom With 5 Degrees Pin 3/8" And 1/2" (10 And 12mm) Glazing Thickness Lifetime Brass Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

SALE

Brixwell H-PIVBGTC5-LB Glass To Curb Mount Beveled Pivot Hinge Bottom With 5 Degrees Pin 3/8" And 1/2" (10 And 12mm) Glazing Thickness Lifetime Brass Finish

Item #: H-PIVBGTC5-LB by Brixwell

See reviewsSee reviews
See reviews summary
In Stock

$38.08

69.81 /each
SAVE UP TO 3.81
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 14 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Solid forged brass body with Lifetime Brass finish for shower enclosures
  • Works with 3/8" and 1/2" (10 and 12mm) frameless glass shower panels
  • Self closing from 25 degree with 5 degree preset and self centering
  • Rated for two hinges supporting door weight up to 120 lbs maximum
  • Maximum door width supported is 36" with bottom mounted placement
  • Supplied with SS hex clamping screws, wrench, and crosshead screw
  • Suitable for residential or commercial frameless shower applications

Finish

Lifetime Brass

Material

Solid Forged Brass

Base Thickness

5/64"

Overall Width

4"

Type

Bottom And With 5 Degrees Pin

Max Door Weight

120 lbs

Max Door Width

36"

Plate Height

2-11/16"

Rated Capacity

2 Hinges

Self-Closing

25 Degrees

Hardware Includes

SS Hex Clamping Screws and Wrench, CrossHead Screw

Mounting Height

2-1/4"

Self Centering Positive Closure

5 Degrees

Weight of 3/8" Glass

5.05 lbs/sf

Weight of 1/2" Glass

6.40 lbs/sf

Designed For Glazing Thickness

3/8" And 1/2" (10 And 12mm)

Product Overview
This Glass to Curb Mount Beveled Pivot Hinge Bottom with 5 degree pin in Lifetime Brass finish is crafted from solid forged brass for use in frameless shower enclosures. Designed for 3/8" and 1/2" (10 and 12mm) glass, it features a 5 degree positive closure with self centering action from 25 degree. Rated for two hinges, it supports doors weight up to 120 lbs and widths up to 36". The hinge provides smooth pivoting at the bottom while maintaining stable door alignment. Hardware includes stainless steel hex clamping screws, wrench, and crosshead screw for secure installation.
