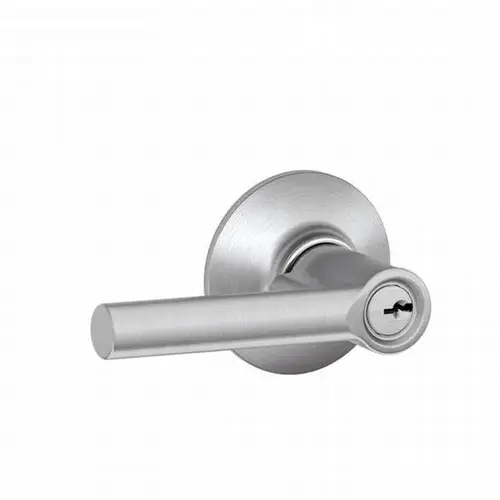

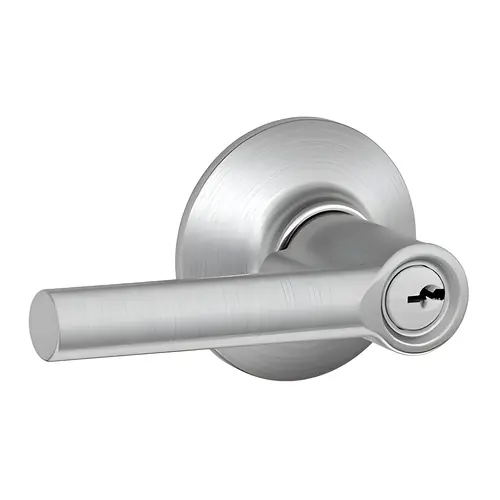

Schlage Residential F80 BRW 626 Broadway Lever Storeroom Lock C Keyway with 16211 Latch and 10063 Strike Satin Chrome Finish
Item #: F80 BRW 626 by Schlage Residential
Brand: Schlage Residential
UPC #: 43156074488
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Storeroom Function - Outside Knob/Lever Fixed; Entrance by Key Only; Inside Knob/Lever Always Unlocked
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Box Pack
- Reversible Handing
- U.L. Listed: Locks for up to three-hour fire doors available
- Includes All Mounting Hardware for Easy Installation
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- Limited Lifetime Mechanical and Finish Warranty
- ADA compliant: Yes
Finish
Satin Chrome
Function
Storeroom
Series
F Series
Backset
Triple Option Adjustable Dead Latch, 2-3/8" or 2-3/4" Backset
Design
Broadway Lever
Strike
Round and Square Corner Full Lip Strikes
Color Code
626/US26D
Handing
Reversible
No Of Pins
5 Pin Cylinder
No of inners
1
Lever Knob Design
Broadway Lever
Latch Faceplate Dimension
1" x 2-1/4"
Finish code
626
Cross Bore Size
2-1/8" Bore
Strike Dimension
1-5/8" x 2-1/4"
Hazardous Material
No
Door Range
1-3/8" to 1-3/4"
Rose/Escutcheon Design
Plymouth Rose
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Door Thickness
1-3/8" to 1-3/4"
Keyway
Schlage C Keyway
Material
Zinc
Dimension
4-1/4" Lever and 2-3/8" Projection with 2-3/4" Diameter Rose
Grade
Grade 2
ANSI/BHMA Standards
F81
Keyed
Yes
Handle Type
Lever
Keying
None (Select for Less Cylinder Options)
Handle Design
Broadway Lever
Electronic
No
Lever/Knob Design
Broadway Lever
Door Handing
Non-Handed
Lever Design
Broadway Lever
Standard Strike
10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
Substrate Type
Zinc and Steel
Door Thickness Range
1-3/8" To 1-3/4"
Lock Type
Cylindrical
Standard Latch
16-086: Dead Latch, Dual Option (Round, Drive-in)
Projection
2-3/8"
Application
Residential entry and side doors or anywhere where keyed security is needed.
Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose Diameter
2-3/4 Inches
Cylinder Type
Conventional Cylinder
Latch Throw
1/2 Inch
Finish Description
Satin Chrome
ANSI Function
F86
Latch Type
Deadlatch
Strike Number
10-027
Strike Type
Radius, Full Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Included Components
Keyed Storeroom Knobs/Levers, Roses, Latch, Strike, Mounting Hardware
Lever Style
BRW-Broadway
Strike Size
1-5/8 x 2-1/4 Inch
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Product Material
Zinc
Strike Name
Round Corner Full Lip
Standards
ANSI/BHMA A156.39-2015; UL Listed
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8 Inches, Edge Bore 1 Inch
Function Description
Outside knob/lever always locked. Entrance by key only. Inside knob/lever always unlocked.
Front Size
1" x 2-1/4"
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Storeroom
Features
Highest Industry Ratings for Residential Security, Durability and Finish; Installs in Minutes; Reversible Levers
Product Type
Cylindrical Lock
Number of Pins
5
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Lever Style Family
Straight Lever
Sub-Series
F80-BRW
Product Overview
Storeroom Lock, Broadway Lever, Satin Chrome
From classic looks that never go out of style to bold contemporary designs, Schlage's levers and door handles fit and accentuate virtually any dcor. Available in a variety of functions, you can choose the perfect look for every room in your house - it's the easiest way to give your entire home a style upgrade.
Easy 3-step installation, only a screwdriver needed.
Schlage's F Series designs range from bold to classic to match any residential décor. Plus, it features an easy 3-step installation, only a screwdriver needed.
