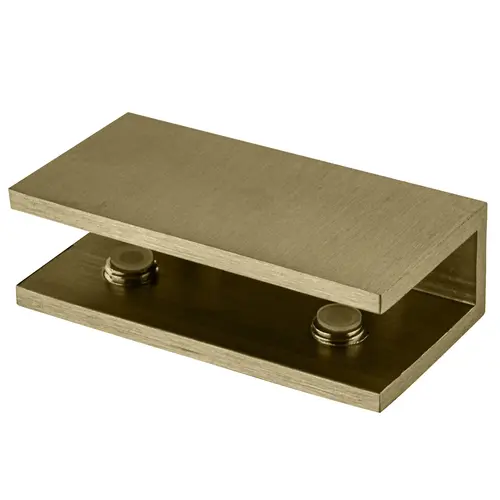

CRL NDC4BBRZ CRL Brushed Bronze No-Drill Fixed Panel Glass Clamp Solid Brass
Item #: NDC4BBRZ by CR Laurence
Brand: CRL
2323 reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Fits 5/16" to 3/8" tempered glass panels
- Solid brass construction for structural strength
- Brushed bronze finish for glass installations
- No drill clamp design requires no glass holes
- Secured with nylon tipped set screws
- Includes mounting screws and clear gaskets
- Must be used on minimum three panel sides
Height
3/4
Glass Thickness Range
3/8" or 5/16" (10 or 8 mm)
Width
1-3/16
Size
2-3/8" (60 mm) Wide x 1-1/8" (28 mm) High
O.D. Height
1-1/8 in (28 mm)
O.D. Depth
3/4 in (19 mm)
Finish
Brushed Bronze
Mounting Type
Wall Mount
Material
Brass
Length
2-3/8
Glazing Thickness
5/16 To 3/8
Finish/Color
Brushed Bronze
Mounting Style
Wall mount
Product Overview
This no-drill fixed panel glass clamp is constructed from solid brass and finished in brushed bronze for use with monolithic tempered glass panels. It is designed to secure fixed glass panels without requiring drilled holes or notches in the glass. The clamp uses two nylon tipped set screws to hold the glass firmly in place while mounting screws are provided for attachment to wall, ceiling, or floor surfaces. Clear gaskets are included to help protect the glass at contact points. This clamp is intended for use with glass thickness ranging from 5/16 inch to 3/8 inch and requires no glass fabrication for installation. For proper installation, clamps must be used on a minimum of three sides of the fixed panel including the top, bottom, and at least one side. Silicone reinforcement must be applied along the entire glass edge where clamps are installed to enhance stability. This clamp is designed for securing fixed panels only and is not intended to support a hinged door from the fixed glass panel. Proper structural backing support must be determined during installation to ensure adequate mounting strength.
