CRL CK146072BN Brushed Nickel 60" x 72" Cottage CK Series Sliding Shower Door Kit With Clear Jambs for 1/4" Glass
Item #: CK146072BN by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Designed for Use with 1/4" (6 mm) Thick Glass
- Use Monolithic Tempered Glass
- Bolt-Through Top Hangers Allow Immediate Fabrication and Installation
- Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze in Up to Six Stock Sizes
- Custom Units Also Available
Size (Width x Height)
60" x 72" (1.52 x 1.83 m)
Glass Thickness
1/4" (6 mm)
Finish
Brushed Nickel
Material
Aluminum
Glazing Thickness
1/4
Maximum Door Width
30
Finish/Color
Brushed Nickel
Maximum Opening Size (Inches)
60 X 72
Roller Location
Top
Maximum Opening Width (Inches)
72
CRL Cottage CK Series Sliders are unique in that they utilize clear polycarbonate side jambs instead of traditional metal side jambs, thus providing more of the popular 'all-glass' look. Bolt-Through Top Hangers allow immediate fabrication and installation, with no waiting for messy adhesive to dry. Cottage Series Kits come in Brite Anodized, Brite Gold Anodized, Brushed Nickel, and Oil Rubbed Bronze finishes, with other finishes available on special order.

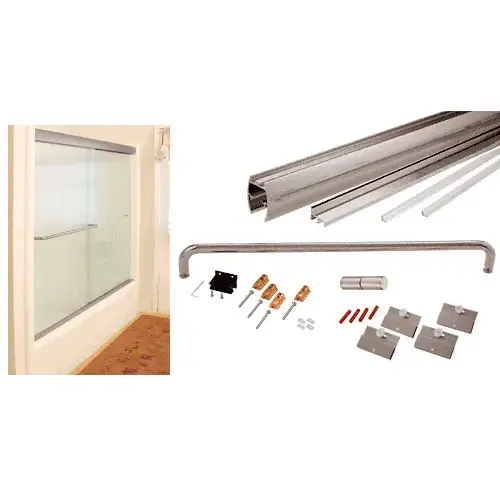

The top hung stock units include: Header, Top Hangers for 1/4" (6 mm) glass, Clear Polycarbonate Side Jambs, Bottom Sill, Back-to-Back Knob, 24" (610 mm) Towel Bar, Nylon Rollers, and Bottom Guide. Tempered glass and silicone sealant are supplied by the installer to complete the installation. Since all rollers are overhead, the Bottom Sill and Clear Side Jambs are uncluttered, making cleaning easy. Available in up to six stock sizes. Extrusions, Bottom Guides, Hardware Packages, and other accessories may be ordered separately as well.
SPECIFICATIONS:
Materials: Extrusions (Aluminum); Side Jambs (Polycarbonate); Towel Bar (Brass Tubing); Knob (Solid Brass)
For Glass Thickness: 1/4" (6 mm) (Glass Not Included in Kit)
Glass Fabrication: Towel Bar – Two 1/2" (12 mm) Diameter Holes, 24" (610 mm) Center-to-Center; Knob – One 1/2" (12 mm) Diameter Hole; Top Hangers – Four 1/2" (12 mm) Diameter Holes (Two Per Glass Panel)
