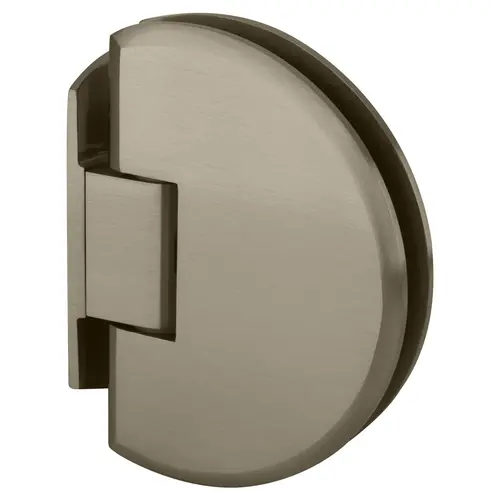

CRL ALUM-CLA044BN-VCP-1 Brushed Nickel Classique 044 Series Wall Mount Flush Back Plate Hinge
Item #: ALUM-CLA044BN-VCP-1 by CR Laurence
Item Discontinued!30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Features Round Design and Beveled Edges
- Wall Mount Flush Back Plate (Allows Clean Sight Line From Shower Exterior)
- Use Monolithic Tempered Glass
Shipping Weight
2 lb (907g)
Width
2-1/2
Height
3-11/16
Finish
Brushed Nickel
Back Plate
Offset
Glazing Thickness
5/16, 3/8
Maximum Door Weight
80
Edge Profile
Beveled
Adjustable
No
Finish/Color
Brushed Nickel
5 Degree Pre-Set
No
Maximum Door Width - 2 Hinges (Inches)
31
Maximum Door Width - 3 Hinges (Inches)
34
Maximum Door Weight - 3 Hinges (Pounds)
120
Mounting Type
Wall Mount
Material
Brass
Maximum Door Weight - 2 Hinges (Pounds)
80
Mounting Style
Wall mount
Height (Inches)
3-11/16
Max Dr Weight - 3 Hinges (Lbs)
120
Max Dr Width - 3 Hinges (Inch)
34
Maximum Door Weight (Pounds)
80
Max Dr Width - 2 Hinges (Inch)
31
The CRL Classique Shower Door Hinge is a design apart from traditional hinges. The beautiful round design and beveled edges are the result of an artist's unique concept of the perfect hinge for décors with strong curved and contoured influences. There are five distinct models, including a Flush Back Plate Wall Mount Hinge for clean exterior sight lines. The Classique's beveled edges make an excellent presentation of sleek design, while the solid brass construction ensures superior quality and long life.
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 31" (787 mm).
Using three hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Round design and beveled edges to match curved or contoured décors.
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Precise Closing to 0º
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
.
