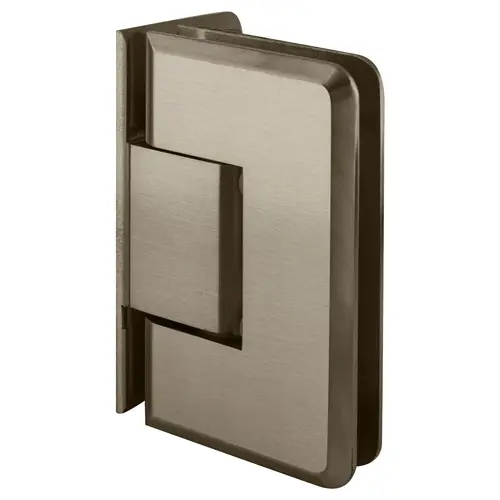

CRL C0L044BN Brushed Nickel Cologne 044 Series Wall Mount Offset Back Plate Hinge, Brass Material, 3/8" To 1/2" Glass, Brushed Nickel Finish
Item #: C0L044BN by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from solid brass with a brushed nickel finish for use in bathroom shower door hardware systems.
- Accommodates 3/8" to 1/2" tempered safety glass, suitable for various shower enclosure configurations.
- Features a wall mount offset back plate design for mounting shower doors directly to bathroom walls.
- Provides 90-degree inward and outward door swings with a self-centering mechanism active within 15 degrees.
- Includes a reversible pivot pin with 90-degree and 85-degree settings to allow for precise door closure alignment.
- Supports a maximum door weight of 100 lbs with 2 hinges or 130 lbs with 3 hinges, depending on glass thickness.
- Includes gaskets, screws, and glass fabrication dimensions for installation, with a maximum clamping torque of 60 lbf.in.
Shipping Weight
1 lb (454g)
Finish
Brushed Nickel
Back Plate
Offset
Glazing Thickness
3/8 to 1/2
Edge Profile
Beveled
Adjustable
No
Finish/Color
Brushed Nickel
Series
Cologne
Maximum Door Width - 1/2 Glass
32"
Self-Centering
Yes
Maximum Door Width - 3/8 Glass
34"
5 Degree Pre-Set
No
Maximum Door Weight - 3 Hinges
130 Lbs.
Maximum Door Weight - 2 Hinges
100 Lbs.
Mounting Type
Wall Mount
Material
Brass
Mounting Style
Wall mount
Maximum Door Weight - 2 Hinges
100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges
130 lbs. (59 kg)
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Opening Style
Swing(side)
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Design Style
Beveled
Height
3-15/16 in. (100 mm)
Width
2-1/4 in. (57 mm)
Maximum Door Width - 1/2 Glass
32 in. (813 mm)
Maximum Door Width - 3/8 Glass
34 in. (864 mm)
Product Overview
The Brushed Nickel Cologne 044 Series Wall Mount Offset Back Plate Hinge is designed for mounting shower doors to walls. Constructed from solid brass, this hinge features beveled edges and radius corners for a clean appearance. It is suitable for 3/8" to 1/2" tempered safety glass. The hinge allows for 90-degree inward and outward swings and includes a self-centering mechanism that engages within 15 degrees of the closed position. It features a reversible pivot pin, with the 90-degree side activated by default, and an 85-degree option for tighter closure. When using two hinges with 3/8" glass, the maximum door weight capacity is 100 lbs with a maximum width of 34". With 1/2" glass, two hinges support up to 100 lbs with a maximum width of 32". Using three hinges increases the capacity to 130 lbs for both glass thicknesses, maintaining the same width limits. The hinge requires a specific cut-out and includes gaskets, screws, and glass fabrication dimensions. The maximum clamping screw torque is 60 lbf.in. This hinge is intended for residential or hotel shower enclosures.
