CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change: They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs.
STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 . The opposite side of the Pin is marked 85 . Standard Cologne Hinges come with the 90 side activated. Pre-Set Models come with the Pin pre-set for 85 (5 tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 . If the standard 5 Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 ).
Using two hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 In and 90 Out
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
Custom finishes are available on request by contacting DK Hardware Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

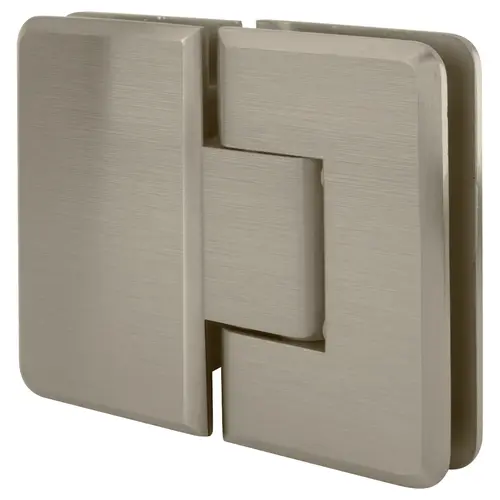

CRL C0L180BN Brushed Nickel Cologne 180 Series 180 degree Glass-to-Glass Hinge
Item #: C0L180BN by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
- 180º Glass-to-Glass
- Use Monolithic Tempered Glass
Shipping Weight
2 lb (907g)
Width
2-1/4" (57 mm)
Height
3-15/16
Finish
Brushed Nickel
Mounting Type
Glass To Glass
Material
Brass
Glazing Thickness
3/8 to 1/2
Maximum Door Width
36
Edge Profile
Beveled
Adjustable
No
Finish/Color
Brushed Nickel
Series
Cologne
Width - Sidelite Portion (Inches)
2-1/4
Self-Centering
Yes
Maximum Door Weight - 3 Hinges (Pounds)
140
Maximum Door Weight - 2 Hinges (Pounds)
110
Width - Door Portion (Inches)
2-1/4
Glass To Glass Angle (Degrees)
180
Positive Close
No
Mounting Style
Glass To Glass
Height (Inches)
3-15/16
Max Dr Weight - 3 Hinges (Lbs)
140
Width - Sidelite Portion (Inch
2-1/4
Max Dr Weight - 2 Hinges (Lbs)
110
Maximum Door Weight - 2 Hinges
110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges
140 lbs. (63.5 kg)
Width - Sidelite Portion
2-1/4
Width - Door Portion
2-1/4 in. (57 mm)
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Opening Style
Swing(side)
Enclosure Type
Niche, Bathtub, Tailor Made Solutions
Design Style
Beveled
Product Overview
CRL Cologne Hinges are similar to the popular Vienna Hinges, but with one change: They have radius corners and beveled edges to provide a sleek appearance. Cologne Hinges are the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Cologne Hinge to be used with its own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Cologne Hinge to fit its own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular, square cornered cut-outs.
STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 . The opposite side of the Pin is marked 85 . Standard Cologne Hinges come with the 90 side activated. Pre-Set Models come with the Pin pre-set for 85 (5 tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 . If the standard 5 Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 ).
Using two hinges with 3/8" to 1/2" glass (10 and 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" and 1/2" glass (10 and 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 In and 90 Out
Closing Type: Self-Centering when within 15 of closed position.
Cut-Out Required - Except C0L092 Which Requires Cut-Out for Door and Two Holes for Fixed Panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
Custom finishes are available on request by contacting DK Hardware Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
