Brushed Nickel Cologne Series Wall Mount 'H' Back Plate Positive Close Hinge

Roll over image to zoom in

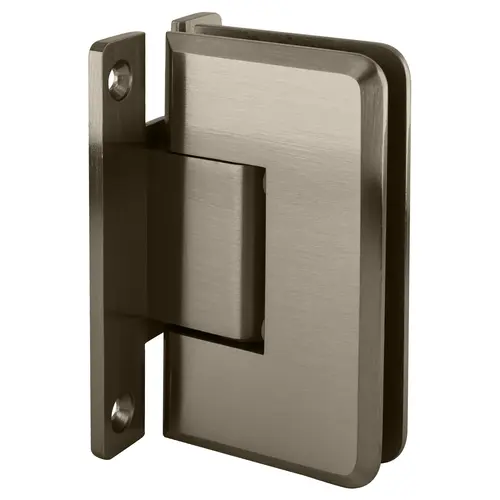

CRL C0L067BN Brushed Nickel Cologne Series Wall Mount 'H' Back Plate Positive Close Hinge

Item #: C0L067BN by CR Laurence

See reviewsSee reviews
See reviews summary
In Stock

$84.18

/each
SAVE UP TO 8.42

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 23 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Other Finished Available Upon Special Order
  • Special Grooved Internal Pivot Pin Allows Positive and Precise Closing Action
  • Stocked in Four Most Popular Finishes
  • Stocked in Wall Mount and 180 Degree Glass-to-Glass Hinges

Shipping Weight

2 lb (907g)

Finish

Brushed Nickel

Mounting Type

Wall Mount

Material

Brass

Width

2-1/4

Back Plate

'H'

Glazing Thickness

3/8 to 1/2

Maximum Door Width

36

Edge Profile

Beveled

Adjustable

No

Finish/Color

Brushed Nickel

Series

Cologne

Self-Centering

Yes

5 Degree Pre-Set

No

Maximum Door Weight - 3 Hinges (Pounds)

140

Maximum Door Weight - 2 Hinges (Pounds)

110

Height

3-15/16

Positive Close

Yes

Mounting Style

Wall mount

Height (Inches)

3-15/16

Max Dr Weight - 3 Hinges (Lbs)

140

Max Dr Weight - 2 Hinges (Lbs)

110

Width (Inches)

2-1/4

Maximum Door Weight - 2 Hinges

110 lbs. (49.9 kg)

Maximum Door Weight - 3 Hinges

140 lbs. (63.5 kg)

Maximum Clamping Screw Torque

60 lbf.in (677.9 cN.m)

Opening Style

Swing(side)

Enclosure Type

Corner, Niche, Bathtub, Tailor Made Solutions

Design Style

Beveled

Product Overview

The Positive Close Cologne Hinge contains an internal grooved pivot pin that allow the door a precise and positive closing action. This is a different closing action than the typical self-centering Cologne Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Positive Closing to Zero Degrees
Cut-Out Required
Includes: Gaskets, Phillips Screws, Allen Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)
Custom finishes are available on request. Contact DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
