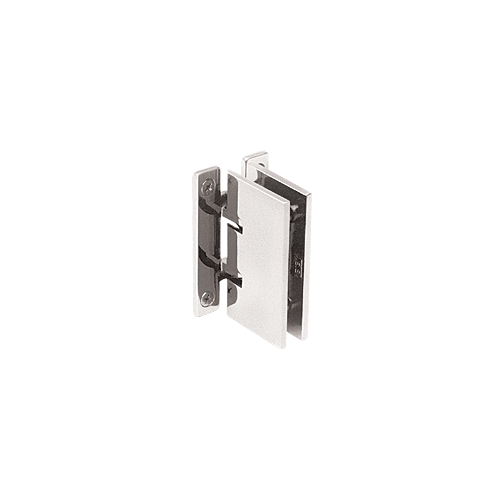

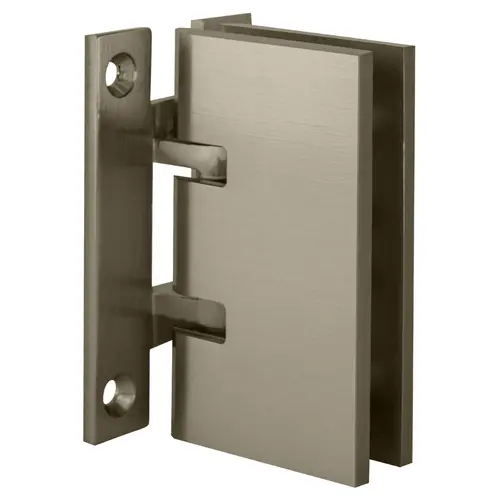

CRL SDH037BN Brushed Nickel Concord 037 Series Wall Mount Hinge

Item #: SDH037BN by CR Laurence

1 reviews

In Stock $87.69 /each

SAVE UP TO 8.77

Buying in bulk

CRL SDH037BN Brushed Nickel Concord 037 Series Wall Mount Hinge

Item #: SDH037BN by CR Laurence

1 1 reviews

In Stock $87.69 /each

SAVE UP TO 8.77

Buying in bulk

QUICK SHIPPING*

Usually ships in 1 business day

QTY
+
+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure your are satified with our products.

  • Self-Centering Action
  • Available in Several Beautiful Finishes
  • Wall Mount
  • Use Monolithic Tempered Glass

Minimum Order

1 Each

Shipping Weight

2 Lb (907g)

Height

3-1/2" (89 mm)

Width

2" (51 mm)

Finish

Brushed Nickel

The variety of styles and finishes in our Concord Series allows the installer/designer to create custom shower enclosures limited only by their imagination. These beautifully finished, solid brass forged Concord Hinges make it possible to mount 3/8" to 1/2" (10 to 12 mm) thick tempered safety glass shower doors without surrounding frames, so the door has an almost "floating" appearance. Their heavy-duty stainless steel springs allow the door to swing 90 degree in and 90 degree out. A friction cam allows the door to be firmly maintained in any position, except when within 15 degree of the closed position, where they are tapered to assist in centering the door.
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width for 3/8" glass of 28" (711 mm) and maximum door width for 1/2" of 26" (660 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width for 3/8" glass of 34" (864 mm) and maximum door width for 1/2" of 30" (762 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Special Features: Our original hinge offers years of reliability and elegance.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
