- Self-Centering Action
- Available in Many Beautiful Finishes

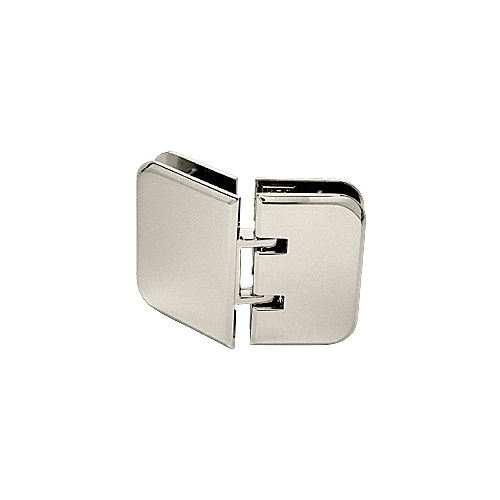

- 135º Glass-to-Glass
3-1/2" (89 mm)
4-3/4" (121 mm)
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width for 3/8" of 28" (711 mm) and maximum door width for 1/2" of 26" (660 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width for 3/8" of 34" (864 mm) and a maximum door width for 1/2" of 30" (762 mm).
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm)Tempered Safety Glass
Special Features: Classic design combines mitered edges with curved corners.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
