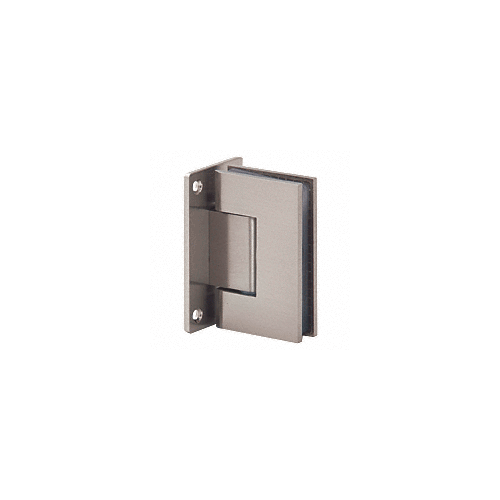

CRL SWM1BN Brushed Nickel International Series Wall Mount Full Back Plate Square Corner Hinge

Item #: SWM1BN by CR Laurence

2 reviews

In Stock $26.95 /each

SAVE UP TO 2.70

Buying in bulk

Roll over image to zoom in

CRL SWM1BN Brushed Nickel International Series Wall Mount Full Back Plate Square Corner Hinge

Item #: SWM1BN by CR Laurence

2 2 reviews

In Stock $26.95 /each

SAVE UP TO 2.70

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Reliable Performance at a Value Price
  • Square Corners
  • Wall Mount Full Back Plate

Max Weight 3 Hinges

120 Lbs. (54 kg) - Width 32" (813 mm)

Max Weight 2 Hinges

80 Lbs. (36 kg) - Width 28" (711 mm)

Finish

Brushed Nickel

Our CRL International Series Hinge blends value with performance. Offered in both traditional square cornered style, and also with modern beveled edges, the International Series Hinge provides design flexibility. Wall Mount with Full Back Plate and 180 Degree Glass-to-Glass Models cover the majority of popular installation configurations. The solid brass International Series Hinge will accommodate 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) thick tempered glass. They are stocked in popular polished chrome and brushed nickel finishes.
Using two hinges with 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) glass the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" (8 mm), 3/8" (10 mm), and 1/2" (12 mm) glass the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness Range: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 10 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
