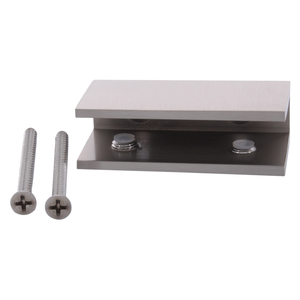

CRL NDC4BN Brushed Nickel No-Drill Fixed Panel Glass Clamp
Item #: NDC4BN by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- No glass fabrication required
- Includes clear gaskets and mounting screws
- No-drill fixed panel clamps allow securing of fixed panels of glass
- Use monolithic tempered glass
- Designed for 5/16" to 3/8" (8 to 10 mm) thick glass
Width
2-3/8" (60 mm)
Depth
1-3/16" (30.2 mm)
Height
1-1/8" (28 mm)
Finish
Brushed Nickel
Material
Solid Brass
Pack Size
1
Made of solid brass, and available in numerous stock finishes, these CRL No-Drill Fixed Panel Clamps provide an alternative to Clamps requiring drilled holes or notches in the glass. Two nylon-tipped set screws are tightened to secure the glass. Mounting screws are also provided for the wall/ceiling/floor. Silicone must also be used for reinforcement along all glass edges where Clamps are used.
IMPORTANT NOTE: Do not hinge a door of a fixed panel using these Clamps. Clamps must be used on a minimum of three sides of the fixed panel (top, bottom, and at least one side). Silicone must be used for reinforcement along the entire edge of the glass where Clamps are used. It is the responsibility of the installer to determine if adequate structural backing support is being used.
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Mounting Screw and Clear Gaskets
No Glass Fabrication Required Important Notes: Do not hinge a door of a fixed panel using these Clamps. Clamps must be used on a minimum of three sides of the fixed panel (top, bottom, and at least one side). Silicone must be used for reinforcement along the entire edge of the glass where Clamps are used. It is the responsibility of the installer to determine if adequate structural backing support is being used.
