Brushed Nickel Pinnacle Adjustable Wall Mount Offset Back Plate Hinge

Roll over image to zoom in

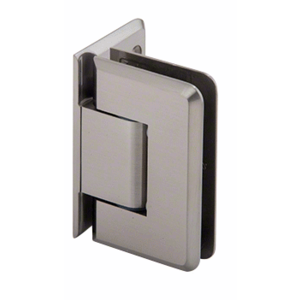

CRL P1N344BN Brushed Nickel Pinnacle Adjustable Wall Mount Offset Back Plate Hinge

Item #: P1N344BN by CR Laurence

1 1 reviews

In Stock $61.47 /each

SAVE UP TO 6.15

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Use Monolithic Tempered Glass
  • Adjustable to Any Angle Up To 90 Degree Without Removing Door
  • Adjustable Wall Mount Offset Back Plate
  • Three Year Warranty

sub category

CRL Brushed Nickel Offset Wall Mount Adjustable Pinnacle Hinge

Shipping Weight

2 lb (907g)

Height

3-1/2

Width

2-3/16

Finish

Brushed Nickel

Back Plate

Offset

Glazing Thickness

5/16 To 1/2

Edge Profile

Beveled

Adjustable

Yes

Finish/Color

Brushed Nickel

Self-Centering

Yes

5 Degree Pre-Set

No

Maximum Door Width - 2 Hinges (Inches)

28

Maximum Door Width - 3 Hinges (Inches)

32

Maximum Door Weight - 3 Hinges (Pounds)

120

Maximum Door Weight - 2 Hinges (Pounds)

80

Mounting Type

Wall Mount

Material

Brass

Mounting Style

Wall mount

Height (Inches)

3-1/2

Max Dr Weight - 3 Hinges (Lbs)

120

Max Dr Weight - 2 Hinges (Lbs)

80

Width (Inches)

2-3/16

Max Dr Width - 3 Hinges (Inch)

32

Max Dr Width - 2 Hinges (Inch)

28

Maximum Door Weight - 2 Hinges

80 lbs. (36.3 kg)

Maximum Door Weight - 3 Hinges

120 lbs. (54.4 kg)

Maximum Door Width - 2 Hinges

28

Maximum Door Width - 3 Hinges

32


CRL Adjustable Pinnacle Series Hinges take our popular Pinnacle Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. The door can swing 90 degree inward and also 90 degree outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degree inside the shower area, thus having the door close snugly against the jamb.
Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Adjustable to any angle up to 90 degree without having to take door down.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree out (at factory set position).
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
Replacement Hardware :
  • P102** - Wall plate replacement screws
  • P615** - Cover plate replacement screws
    NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. .
    Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
    Product Warning:
    CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
    Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

    .
