Brushed Nickel Pinnacle 580 Series 5 Degree Glass-To-Glass Hinge

Roll over image to zoom in

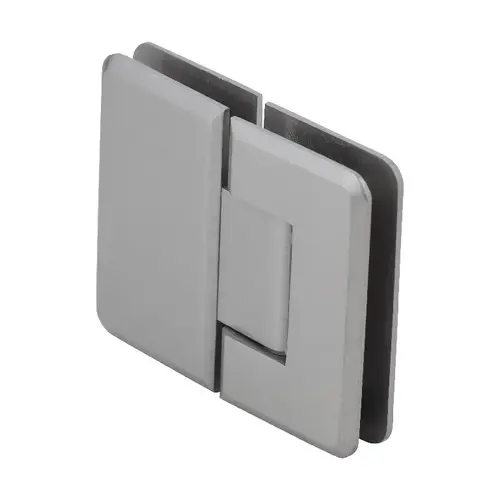

CRL P1N580BN Brushed Nickel Pinnacle 580 Series 5 Degree Glass-To-Glass Hinge

Item #: P1N580BN by CR Laurence

See reviewsSee reviews
In Stock

$93.83

/each
SAVE UP TO 9.38

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Use Monolithic Tempered Glass
  • 5 Degree Pre-Set Model (Factory Set for 5 Degree Tighter Closure Into Shower Interior)
  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Three Year Warranty

Shipping Weight

2 lb (907g)

Height

3-1/2

Width

2-3/16" (56 mm)

Finish

Brushed Nickel

Mounting Type

Glass To Glass

Material

Brass

Glazing Thickness

5/16 To 1/2

Edge Profile

Beveled

Adjustable

No

Finish/Color

Brushed Nickel

Series

Pinnacle

Width - Sidelite Portion (Inches)

2-3/16

Self-Centering

Yes

5 Degree Pre-Set

Yes

Maximum Door Width - 2 Hinges (Inches)

28

Maximum Door Width - 3 Hinges (Inches)

32

Maximum Door Weight - 3 Hinges (Pounds)

120

Maximum Door Weight - 2 Hinges (Pounds)

80

Width - Door Portion (Inches)

2-3/16

Glass To Glass Angle (Degrees)

180

Mounting Style

Glass To Glass

Height (Inches)

3-1/2

Max Dr Weight - 3 Hinges (Lbs)

120

Width - Sidelite Portion (Inch

2-3/16

Max Dr Weight - 2 Hinges (Lbs)

80

Max Dr Width - 3 Hinges (Inch)

32

Max Dr Width - 2 Hinges (Inch)

28

Maximum Door Weight - 2 Hinges

80 lbs. (36.3 kg)

Maximum Door Weight - 3 Hinges

120 lbs. (54.4 kg)

Maximum Door Width - 2 Hinges

28

Maximum Door Width - 3 Hinges

32

Width - Sidelite Portion

2-3/16

Width - Door Portion

2-3/16 in. (56 mm)
