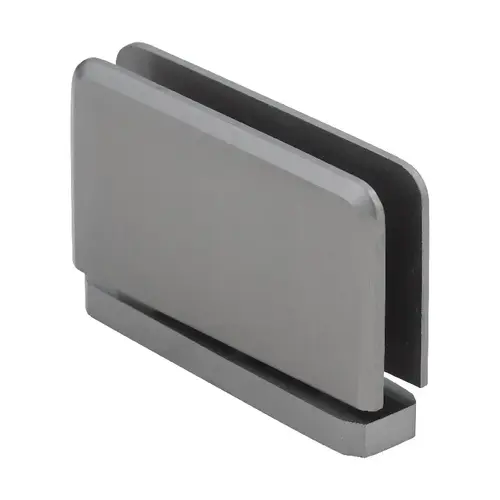

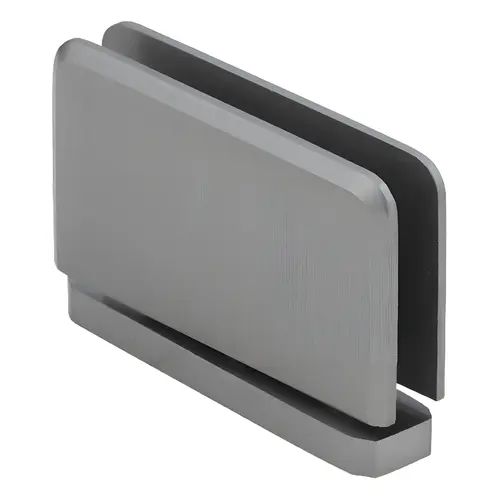

CRL PPH0152BN Brushed Nickel Prima #2 Pin 01 Series Top or Bottom Mount Hinge
Item #: PPH0152BN by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Number Two Pivot Pin Model for Mounting at Top Right or Bottom Left of Door (Viewed From Outside)
- Use Monolithic Tempered Glass
- U.S. Patent 5,297,313
Shipping Weight
2 Lb (907g)
Height
2
Width
3-5/8
Finish
Brushed Nickel
Edge Profile
Beveled
Maximum Door Width
31
Mounting Type
Head & Sill Mount
Maximum Door Weight - 2 Hinges (Pounds)
100
5 Degree Pre-Set
Yes
Glazing Thickness
5/16 To 3/8
Material
Brass
Finish/Color
Brushed Nickel
Self-Centering
Yes
Mounting Style
Head & Sill Mount
Height (Inches)
2
Max Dr Weight - 2 Hinges (Lbs)
100
Width (Inches)
3-5/8
CRL Prima 5 degree Pre-Set Hinges are designed for use with 5/16" (8 mm) to 3/8" (10 mm) thick tempered safety glass. The Number One Pivot Pin Model is set so that it would be used at either the top left or bottom right of the door. The Number Two Pivot Pin Model is set so that it would be used at either the top right or bottom left of the door. When installing, you will always use one Number One Model, and one Number Two Model. They can then be positioned with the options described above. The 5 degree Pivot Pins allow the door to close 5 degree further into the shower enclosure. This is especially helpful in closing the door tightly against a strike jamb. These hinges may be mounted floor and ceiling, or into our Deluxe Header System.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Contains Pre-Set 5 degree Pivot Pin, which allows the door to close 5 degree further into the shower enclosure (see Ordering Tip*).
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
*ORDERING TIP: When ordering Prima 5 degree Pre-Set Hinges, you should order one each of the Number One Pivot Pin Model, and one each of the Number Two Pivot Pin Model per door.
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
