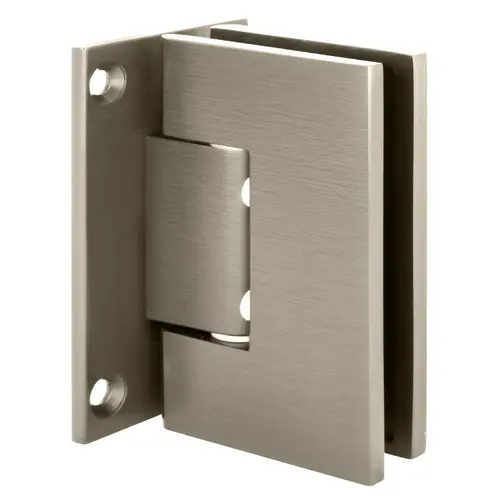

CRL MEL037BN Brushed Nickel Melbourne Wall Mount Full Back Plate Hinge
Item #: MEL037BN by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For Use with 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Thick Tempered Glass
- Large Hinge Plates Provide More Clamping Force
- Simple Rectangular Cut-Out for Ease of Glass Fabrication
- Stocked in Three Popular Finishes, with Custom Finishes Available
Finish
Brushed Nickel
Mounting Type
Wall Mount
Material
Brass
Back Plate
Full
Glazing Thickness
5/16 To 1/2
Adjustable
No
Finish/Color
Brushed Nickel
Series
Melbourne
Self-Centering
Yes
5 Degree Pre-Set
No
Maximum Door Width - 2 Hinges
30"
Maximum Door Width - 3 Hinges
34"
Maximum Door Weight - 3 Hinges
120 Lbs.
Maximum Door Weight - 2 Hinges
100 Lbs.
Mounting Style
Wall mount
Height
3-9/16 in. (90 mm)
Width
2-7/16 in. (62 mm)
Maximum Door Weight - 2 Hinges
100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges
120 lbs. (54.4 kg)
Product Overview
CRL Melbourne Series Hinges feature large hinge plates that provide more clamping force. The required simple rectangular cut-out is for ease of glass fabrication. Constructed of forged solid brass, the Melbourne Series offers three versions of wall mount models, a 180 degree glass-to-glass model, and replacement cover plates for concealment of hinge plate screws. For use with 1/2", 3/8", and 5/16" (12, 10 and 8 mm) thick tempered glass. Stocked in three popular finishes, with custom finishes available.
Using two hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 30" (762 mm).
Using three hinges with 1/2", 3/8", and 5/16" glass (12, 10, and 8 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 1/2", 3/8", and 5/16" (12, 10, and 8 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 degrees in and 90 degrees out (at factory set position).
Closing Type: Self-Centering when within 15 degrees of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use.
