Use Item No. P512 Replacement Screws for Cover Plate available in multiple finishes. Conveniently packaged in packs of 100.
NOTE: Not Available in Germany.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 40" (1.02 m).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Ideal for Bi-Fold Application. Use ZUR01 and ZUR03 for doors that fold into tub area. Use ZUR02 and ZUR05 for doors that fold out to bathroom area.
Construction: Stainless Steel or Solid Brass
Hinge Swings: See descriptions next to photos of hinges.
Closing Type: Free-Swinging
Two Holes Required Per Hinge Per Panel (No Cut-Out)
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

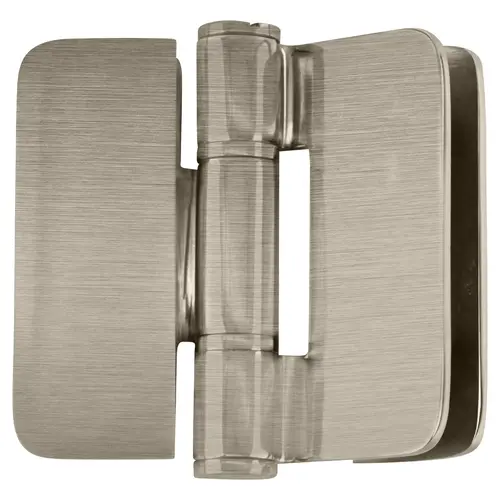

CRL ZUR01BN Brushed Nickel Zurich 01 Series 180 Degree Glass-to-Glass Outswing or Inswing Bi-Fold Hinge
Item #: ZUR01BN by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Use Monolithic Tempered Glass
- 180 Degree Glass-to-Glass Outswing or Inswing Bi-Fold Applications
Using 2 Hinges
5/16" (8 MM) or 3/8" (10 MM) GLASS 100 lbs/45 kg 36"/914 mm
Using 3 Hinges
5/16" (8 MM) or 3/8" (10 MM) GLASS 150 lbs/68 kg 40"/1016 mm
Height
3-1/8
Width
1-3/16" (30 mm)
Finish
Brushed Nickel
Mounting Type
Glass To Glass
Material
Brass
Glazing Thickness
5/16 To 3/8
Edge Profile
Square
Finish/Color
Brushed Nickel
Series
Zurich
Width - Sidelite Portion
1-3/16"
Self-Centering
No
Maximum Door Width - 2 Hinges
36"
Maximum Door Width - 3 Hinges
40"
Maximum Door Weight - 3 Hinges
150 Lbs.
Maximum Door Weight - 2 Hinges
100 Lbs.
Width - Door Portion
1-3/16"
Glass To Glass Angle
180 degrees
Maximum Door Weight - 2 Hinges
100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges
150 lbs. (68 kg)
Product Overview
The CRL Zurich Series of professional Hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass was the first Bi-fold Hinge offered by CRL. All seven Zurich Hinge models feature stainless steel or brass construction, and are available in up to 13 finishes. Only two holes per Hinge per panel are required, with no cut-out necessary.
Use Item No. P512 Replacement Screws for Cover Plate available in multiple finishes. Conveniently packaged in packs of 100.
NOTE: Not Available in Germany.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 36" (914 mm).
Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 150 lbs. (68 kg) with a maximum door width of 40" (1.02 m).
SPECIFICATIONS:
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
