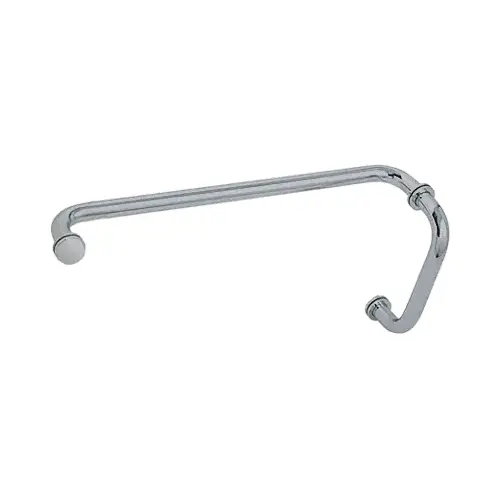

CRL BM8X18BSC Brushed Satin Chrome 8" Pull Handle and 18" Towel Bar BM Series Combination With Metal Washers
Item #: BM8X18BSC by CR Laurence
Item Discontinued! See reviews See
reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- Attractive Metal Washers
- Shower Enclosure, Along with a Convenient Towel Bar for the Outside
Metal Washer Diameter
1-1/4 in (31.75 mm)
Tube Diameter
3/4 in (19 mm)
Thread Size
1/4"-20
Handle
8" (203 mm)
Projection From Surface
2-1/2" (63.5 mm)
Towel Bar
18" (457 mm)
Finish
Brushed Satin Chrome
The CRL BM Series of Pull Handle/Towel Bar Combinations With Metal Washers are provided with all the hardware required for installation. They are constructed of 1.5 mil thick heavy brass tubing. Each set consists of a pull handle/towel bar set, along with decorative metal back-up washers and plastic washers to protect against glass-to-metal contact.
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick), 1-1/4" (32 mm) Diameter Metal Washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing:
6" Pull = 6" (152 mm)
8" Pull = 8" (203 mm)
12" Pull = 12" (305 mm)
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
AVAILABLE SIZES:
Cat. No. BM6X12 6" Pull/12" Towel Bar
Cat. No. BM6X18 6" Pull/18" Towel Bar
Cat. No. BM6X22 6" Pull/22" Towel Bar
Cat. No. BM6X24 6" Pull/24" Towel Bar
Cat. No. BM8X18 8" Pull/18" Towel Bar
Cat. No. BM8X20 8" Pull/20" Towel Bar
Cat. No. BM8X22 8" Pull/22" Towel Bar
Cat. No. BM8X24 8" Pull/24" Towel Bar
Cat. No. BM12X24 12" Pull/24" Towel Bar
SPECIFICATIONS:
Material: 3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick), 1-1/4" (32 mm) Diameter Metal Washers
Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)
Hole Diameter Required: 1/2" (12 mm)
Center-to-Center Hole Spacing:
6" Pull = 6" (152 mm)
8" Pull = 8" (203 mm)
12" Pull = 12" (305 mm)
12" Towel Bar = 12" (305 mm)
18" Towel Bar = 18" (457 mm)
20" Towel Bar = 20" (508 mm)
22" Towel Bar = 22" (559 mm)
24" Towel Bar = 24" (610 mm)
AVAILABLE SIZES:
Cat. No. BM6X12 6" Pull/12" Towel Bar
Cat. No. BM6X18 6" Pull/18" Towel Bar
Cat. No. BM6X22 6" Pull/22" Towel Bar
Cat. No. BM6X24 6" Pull/24" Towel Bar
Cat. No. BM8X18 8" Pull/18" Towel Bar
Cat. No. BM8X20 8" Pull/20" Towel Bar
Cat. No. BM8X22 8" Pull/22" Towel Bar
Cat. No. BM8X24 8" Pull/24" Towel Bar
Cat. No. BM12X24 12" Pull/24" Towel Bar
