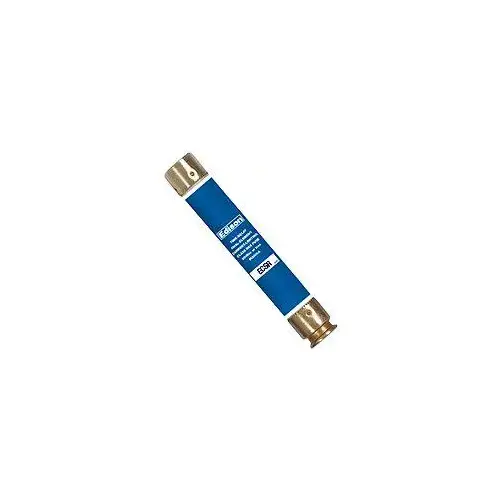

Bussmann ECSR30 Time Delay Fuse, 30 A, 600 V, 200 kA Interrupt, Fiberglass Body
Item #: ECSR30 by Bussmann Electrical
UPC #: 051712273718
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Class RK5
- Provides motor overload, ground fault and short circuit protection
- Permits the use of smaller and less costly switches
- Provides a higher degree of short circuit protection in circuits in which surge currents or temporary overloads occur
- Helps protect motors against burnout from overloads
- Gives motor running backup protection to motors without extra costs
- Helps protect motors against burnout from 1-phase on 3-phase systems
- Simplifies and improves blackout prevention
- Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high-performance, short circuit and overload protection
- The overload element provides protection against low level overcurrent of overloads
Returnable
Yes
UL Listed
Yes
Defective Code
A
Endcap Construction
Copper
Number in Package
1 each
Tube Construction
Copper
Application
For inductive components, motors and transformers
Volts
600 V
Packaging Type
Boxed
Individual Product Diameter
13/16"
Product Type
Dual Element Time Delay Fuse
AMPS
30 Amps
CSA Listed
Yes
Tamper Proof
No
Individual Product Length
5"
Each Weight
0.200 LB
Velocity
C
Hazardous Material
No
Alternative UPC
051712340281, 051712508346, 782634508342
Length
5"
Element Type
Dual
Interrupt Rating
200 kA
Nomenclature
ECSR30 30A 600V TIMEDELAY FUSE
Indicator Type
Non-Indicating
Rejection/Non-Rejection
Rejection
Diameter
13/16"
Current Rating
30 A
Same size as ordinary fuses. 10 secs minimum time lag at 500% rated current prevents shutdowns caused by starting currents or other harmless overloads. Guards motor against burnout from overloads or single phasing. Operates cooler than other fuse types, reduces heating in switches and panels. 13/16 in Dia x 5 in L. Class RK5, 600 V maximum. UL Listed, CSA Certified.
