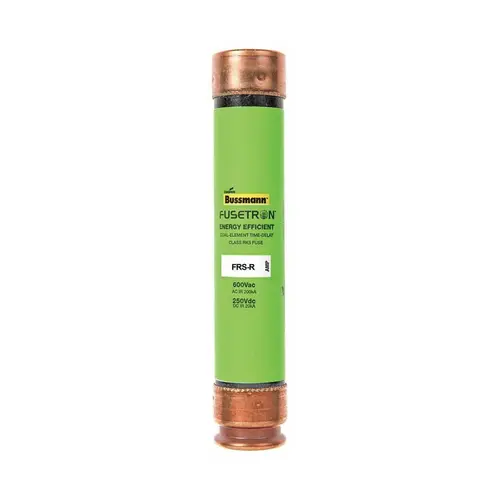

Bussmann FRS-R-30Click To Copy Time Delay Fuse, 30 A, 600 VAC, 300 VDC, 20, 200 kA Interrupt, Fiberglass Body
Item #: FRS-R-30 by BUSSMANN FUSES
UPC #: 051712508346
See reviewsSee reviews
In Stock
$21.07
/cardSAVE UP TO 2.11
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 52 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Dual-element feature provides the ideal time delay performance, allowing closer sizing and excellent protection of motors and transformers
- Closer sizing allows for smaller fuses and less costly switches
- Provides motor overload, ground fault and short circuit protection
- Helps protect motors against burnout from overloads and 1-phase when sized properly
- Offers a 10 secs time delay at 5 times the rated current
- The time delay feature makes it possible to use fuse amp ratings that are much smaller than those of non-time delay fuses
- Provides current limitation to help protect downstream components from high fault currents
- Gives motor running backup protection to motors without extra costs
- Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high-performance, short circuit and overload protection
Indicator Type
Non-Indicating
Type
Energy Efficient
Current Rating
30 A
Length
5"
Element Type
Dual
Terminal Type
Ferrule Holder
Interrupt Rating
20 200 kA
Diameter
13/16"
Nomenclature
FRS-R-30 FUSE TIME DELAY 30A
Rejection/Non-Rejection
Rejection
Voltage
600, 600 volts
Material
Brass
Warranty
none
Pack Size
1
Manufacturer Warranty
None
Certifications and Listings
CSA Certified, UL Listed
Maximum Amperage
30, 30 amp
Product Depth (in.)
5
Product Diameter (in.)
0.81
Product Height (in.)
0.81
Product Length (in.)
5
Product Width (in.)
0.81
Product Overview
FRS-R-30 FUSE TIME DELAY 30A
Specifications:
Specifications:
Application: For combination starters, machinery disconnects, motor control centers and power panel boards
These cartridge fuses are 23% more energy-efficient and offer the ideal time delay performance. Their dual-element feature allows closer sizing to load for excellent protection of motors and transformers. These class RK5 fuses with a 200 kA interrupting rating can be used in a broad range of applications. When sized correctly, they help protect motors from burnout caused by overloads or single phasing. The time delay feature allows the initial startup current surge for typical motors to pass, but opens prior to motor burnout when longer, dangerous overloads are present. In addition, the dual-element design opens in as little as 0.004 secs if the fuse experiences short circuit conditions. All fuses are UL listed Class R (IR: 200 kA).
