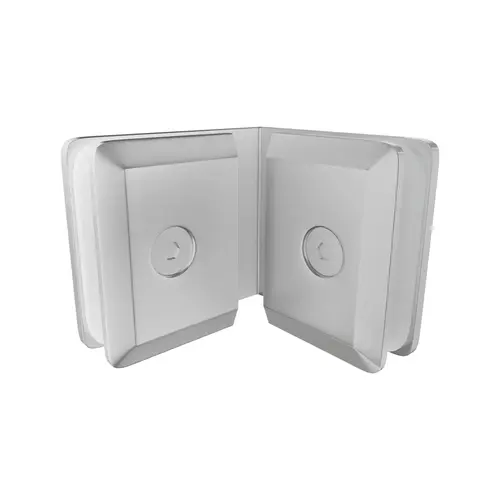

Brixwell C-P90-SA Beveled Glass To Glass Clip 90 Degrees 3/8" and 1/2" Glass Thickness Satin Finish
Item #: C-P90-SA by Brixwell
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Made of solid forged brass with satin finish and beveled edge profile for neat appearance.
- Beveled glass-to-glass clip designed to connect two fixed glass panels at a 90 degree corner.
- Suitable for 3/8" (10mm) and 1/2" (12mm) glass thickness, requiring fabrication for installation.
- Each clip side measures 2-1/2" width, 2" height, 3/16" thickness, and depth dimension of 5/8".
- Designed as a non-adjustable glass-to-glass clip for use in fixed panel shower enclosures.
- Hardware kit includes matching finish stainless steel hex style clamping screws for mounting.
- Glass fabrication required to prepare the cutout holes for correct installation of clip assembly.
Finish
Satin
Mounting Type
Glass To Glass
Material
Solid Forged Brass
Depth
5/8" (16mm)
Glass Fabrication Required
Yes
Edge Profile
Beveled
Designed For
3/8" and 1/2" (10mm and 12mm) Glass
Hardware Included
Matching Finish SS Hex Style Clamping Screws
Adjustable
No
Glass To Glass Angle
90 Degrees
Thickness (Each Side)
3/16" (5mm)
Height (Each Side)
2" (51mm)
Width (Each Side)
2-1/2" (63.5mm)
Product Overview
The Beveled Glass To Glass Clip 90 Degrees in satin finish is designed for securing two fixed glass panels together at a right angle, creating a strong and seamless corner connection in frameless shower enclosures or architectural glass projects. Constructed from solid forged brass, this clip provides lasting strength while maintaining a clean, decorative appearance. It is suitable for 3/8" (10mm) and 1/2" (12mm) thick glass and requires fabrication cutouts for installation. Each side of the clip measures 2-1/2" width, 2" height, 3/16" thickness, and 5/8" depth, making it compact yet reliable for supporting glass panels. The beveled edge profile adds a refined touch while allowing smooth transitions between adjoining glass edges. Non-adjustable in design, this clip is intended for precise glass-to-glass mounting applications. Hardware includes matching finish stainless steel hex clamping screws that provide secure attachment and long-term stability. Whether used in shower doors, bathroom partitions, or other frameless installations, the beveled clip delivers both structural integrity and a polished appearance, ensuring that glass panels stay firmly in place while maintaining a modern frameless aesthetic.
