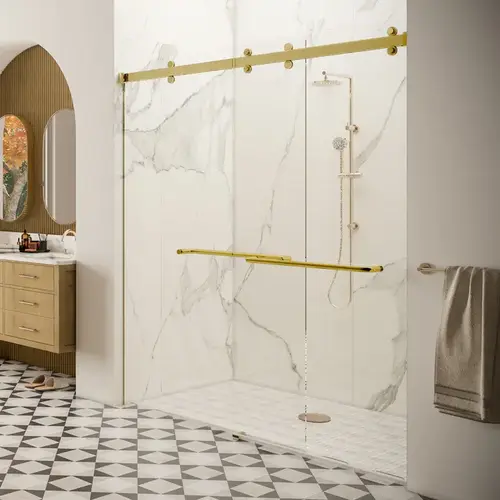

CRL CAM73SB Satin Brass Deluxe 180 Degree Cambridge Series Two Door Bypass Sliding Shower Door System, Stainless Steel Material, 73" Length, Satin Brass Finish
Item #: CAM73SB by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from stainless steel with a satin brass finish, providing a functional component for shower door systems.
- Features a 73" length header bar and supports a maximum door height of 80" for various shower and bathtub configurations.
- Compatible with 5/16" to 3/8" thick tempered safety glass, suitable for bypass sliding door applications.
- Utilizes a top roller design with four rollers per door to facilitate sliding movement in shower enclosures.
- Supports a maximum door width of 37" and a maximum door weight of 84 lbs per door for stable operation.
- Designed for corner, niche, and bathtub enclosures, offering a versatile sliding door system for bathroom hardware.
- Includes a 73" header bar, eight rollers, two stoppers, two track holders, bottom guide, two 24" towel bars, and two 40" sweeps.
Finish
Satin Brass
Material
Stainless Steel
Maximum Door Height
80 in. (2032 mm)
Length
73 in. (1854 mm)
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Maximum Door Weight
84 lbs. (38.1 kg)
Maximum Door Width
37 in. (940 mm)
Maximum Opening Width
73
Finish/Color
Satin Brass
Series
Cambridge
Roller Location
Top
Opening Style
Slide
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Design Style
Squared
Product Overview
The Satin Brass Deluxe 180 Degree Cambridge Series Two Door Bypass Sliding Shower Door System is a sliding door solution for shower enclosures and bathtubs. Constructed from stainless steel, this system features a top roller fitting with four rollers on each door for sliding movement. The system is compatible with 5/16" to 3/8" thick tempered safety glass, which is not included. It supports a maximum door width of 37" and a maximum door weight of 84 lbs. The system includes a 73" length stainless header bar, eight stainless steel rollers, two stoppers, two track holder fittings for wall mounting, one bottom guide, two 24" stainless towel bars, two 80" clear L-jambs, two 40" bottom sweeps with drip rails, and a tool kit. The maximum door height is 80". This system is designed for corner, niche, and bathtub enclosures. The finish is satin brass.
