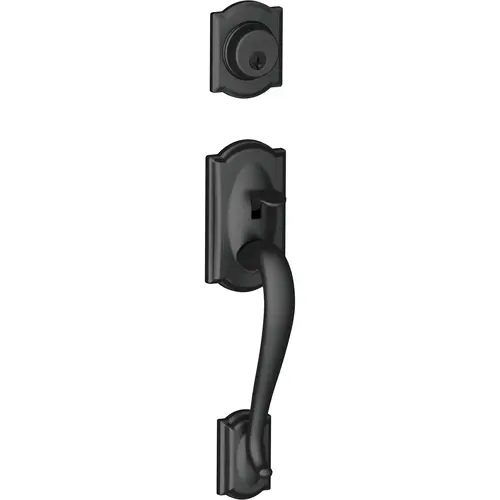

F92 Camelot Inactive Handleset Exterior, Matte Black

Roll over image to zoom in

Schlage Residential F92 CAM 622 F92 Camelot Inactive Handleset Exterior, Matte Black

Item #: F92 CAM 622 by Schlage Residential

UPC #: 043156173877

See reviews See reviews

In Stock $171.92 /each

SAVE UP TO 17.19

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Exterior Active Handleset - Outside Grip & Deadbolt Trim of F60; Order with F59 for Complete Handleset
  • Exterior Inactive Handleset - Outside Grip of F93; Includes Entry Handleset & Dummy Cylinder
  • One-Tool Installation - Installs with Just a Phillips Screwdriver
  • Applications: Residential single and multi-family entrance doors.
  • Reversible Handing
  • Keying: F-Series handlesets are 5-pin tumbler with two keys per lock.
  • Patented Throughbolt Slides Up and Down So You Don't Have to Patch/Redrill Your Door
  • Lifetime Mechanical & Finish Warranty
  • Certified Commercial Grade 1
  • Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
  • Graded Best in Residential Security, Durability, and Finish

Finish

Matte Black

Function

92-Inactive Handleset Exterior

Design

Camelot

Color

Flat Black Coated

Color Code

622/US19/MTBK

Mount

Sectional

Handle Style

CAM-Camelot

Finish Description

Black

Rose/Escutcheon Trim

Arch Escutcheon

Product Type

Handleset

Grade

ANSI/BHMA Grade 1

Handing

Reversible

Projection

2.9375

Door Thickness

1-5/8" to 1-7/8"

Bore Size

2.1250

Included Components

Outside Inactive Grip; Dummy Deadbolt; (2) Cut Keys

Product Material

Zinc

Box Length

16.2500

Box Width

7.9700

Box Height

3.9000

Application

Residential

Warranty

Lifetime limited mechanical and finish warranty

ADA Compliant

No

Finish Family

Black

Standards

ANSI/BHMA A156.36-2016; ANSI/BHMA A156.40-2015

Function Family

Dummy

Features

Door Frame Reinforcer With 3" Screws; Adjustable Throughbolt can Move Up and Down 1-1/2" to Fit a Variety of Pre-Existing Holes; Pair With An F94 for a Complete Inactive Handleset

Manufacturer Parent

Allegion

Inside Trim Function

F94 Inside Trim

Box Dimensions (L x W x H)

3.9x7.97x16.25"

Sub-Series

F92-CAM

Door Cross Bore

2.125 Inch

F SeriesHandlesets

Your front door is more than just an entrance, it's also a showpiece – one of the first things a guest sees. That's why it’s important to choose the right handleset. Schlage offers a wide variety of designs and finishes, from angular to flowing, classic to contemporary, all designed to ensure that your front door is the perfect introduction to your home.

Available Functions: F58 – Handleset/Entrance Lock Exterior:
  • Outside grip and deadbolt trim of F60
  • Pair with an F59 for a complete handleset
F59 – Handleset/Entrance Lock Interior:
  • Inside trim, deadbolt thumbturn, latches, strikes & screws for F60
  • Pair with an F58 for a complete handleset
F60 – Single Cylinder Deadbolt/Entrance Lock:
  • Deadbolt thrown or retracted by key from outside or by inside thumbturn
  • Latch retracted by thumbpiece from outside or by inside knob/lever
F62 – Double Cylinder Handleset/Entrance Lock*:
  • Deadbolt thrown or retracted by key from either side
  • Latch retracted by thumbpiece from outside or by inside knob/lever
F92 – Inactive Handleset Exterior:
  • Outside inactive grip & dummy deadbolt
  • Pair with an F94 for a complete inactive handleset
F94 – Inactive Handleset Interior:
  • Inside inactive knob/lever, blank deadbolt trim & screws
  • Pair with an F92 for a complete inactive handleset
F93 – Inactive Handleset:
  • For use as door pull or as decorative trim on inactive leaf of pair of doors
  • Fixed thumbpiece and inside knob/lever
  • Decorative deadbolt with inside trim
FE285 - Lower Half - Front Entry Set:
  • Combine with Electronic Deadbolt for complete
    Front Entry Set
  • Latch retracted by thumbpiece from outside or by inside knob/lever
  • *CAUTION: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
Latches & Strikes: Latches:
  • 12-322 - Dual Option - Round Corner + Drive-in
    (16-080 + 12-321)
  • 12-326 - Triple Option - Round Corner + Square Corner + Drive-in (16-210 + 12-287) Standard
  • 12-353 - F60/62 UL Listed, 1" Square Corner
  • 12-354 - F60/62 UL Listed, 1" Round Corner
Strikes:
  • 10-115 - Round Corner Full Lip Strike Set (10-027 + 10-116)
  • 10-269 - Round Corner Strike Set (10-026 + 10-027 + 10-116) Standard
Specifications: Certification:
  • ANSI/BHMA A156.36-2016 Commercial Grade 1
  • ANSI/BHMA A156.40-2015 Residential Grade AAA
Latch:
  • 1" x 2 1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw springlatch
Deadbolt:
  • 1" x 2 1/4", 1/4" radius corner faceplate, 1" housing diameter, 1" throw, latchset number 12-321
Strike:
  • Part 10-269, includes: 1 1/4" radius corner deadbolt strike (10-116), radius round corner full lip strike (10-027)
Reinforcement:
  • Door frame reinforcer with 3" screws
Backset:
  • Universal backset latch and deadbolt, fits either 2 3/8" or 2 3/4" backsets
Cylinder:
  • 5-Pin, keyed 5-Pin, C keyway, keyed different (KD)
Door Range*:
  • 1 5/8" - 1 3/4"
Keys:
  • Two cut keys per lock, 5-pin, C section
Adjustable Throughbolt:
  • Adjustable throughbolt can move up and down 1 1/2" to fit a variety of pre-existing holes
  • Locks are furnished with standard features unless otherwise specified To order locks with non-standard features specify non-standard feature desired
  • *Thick door kit available for door thicknesses up to 2 1/4" See Parts sections for item number and pricing
Finishes: 505:
  • Lifetime Bright Brass
605:
  • Bright Brass (US3)
608:
  • Satin Brass
609:
  • Antique Brass (US5)
613:
  • Oil-Rubbed Bronze (US10B)
618:
  • Polished Nickel
619:
  • Satin Nickel (US15)
620:
  • Antique Pewter (US15A)
621:
  • Distressed Nickel
622:
  • Matte Black (US19)
625:
  • Bright Chrome (US26)
626:
  • Satin Chrome (US26D)
716:
  • Aged Bronze
  • Non-standard finishes are not available.
  • Full-color swatch examples available on inside Handleset tab.
