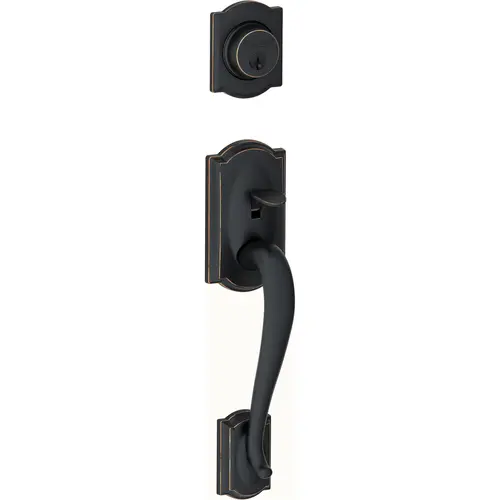

Schlage Residential F58 CAM 716 Camelot Series Handleset, Keyed Different Key, Solid Brass, Aged Bronze, 2-3/8 x 2-3/4 in Backset
Item #: F58 CAM 716 by Schlage Residential
UPC #: 043156164318
In Stock $142.73 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Exterior Active Handleset - Outside Grip & Deadbolt Trim of F60; Order with F59 for Complete Handleset
- One-Tool Installation - Installs with Just a Phillips Screwdriver
- Reversible Handing
- Applications: Residential single and multi-family entrance doors.
- Patented Throughbolt Slides Up and Down So You Don't Have to Patch/Redrill Your Door
- Lifetime Mechanical & Finish Warranty
- Keying: F-Series handlesets are 5-pin tumbler with two keys per lock.
- Certified Commercial Grade 1
- Graded Best in Residential Security, Durability, and Finish
- Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
Color
Antique Bronze
Color Code
643E/US11/716
Function
58-Entrance Handleset Exterior
Design
Camelot
Finish
Aged Bronze
Mount
Sectional
Handle Style
CAM-Camelot
Cylinder Type
5-Pin
Finish Description
Aged Bronze
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
Arch Escutcheon
Product Type
Handleset
Grade
ANSI/BHMA Grade 1
Keyway
Schlage C
Handing
Reversible
Projection
2.9375
Door Thickness
1-5/8 to 1-3/4"
Bore Size
2.1250
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Included Components
Outside Grip Handle; Deadbolt Trim of F60; (2) Cut Keys
Box Length
16.2500
Box Width
7.9700
Box Height
3.9000
Returnable
Yes
Defective Code
A
Commercial or Residential
Residential
Lockset Type
Single
Number in Package
1 pk
ADA Compliant
No
Indoor or Outdoor
Outdoor
Maximum Door Thickness
1-3/4"
Style
Camelot
Packaging Type
Boxed
Minimum Door Thickness
1-3/8"
Knob style
Handleset
Door Direction
Right or Left Handed
Material
Solid Brass
Knob or Lever Cross Bore Diameter
2-1/8"
Each Weight
4.100 LB
Velocity
X
Hazardous Material
No
Keyway type
C
Latch Housing Diameter
1"
Key Type
Keyed different
Center to Center
4"
Plainbolt Latch Throw
1/2"
Application
Residential
Edge Bore Diameter
7/8"
Dimensions
7/8"
Nomenclature
F58CAM716 CAM HANDLESET A BRNZ
Deadbolt Latch Throw
1"
Backset Type
Universal
Strike Type
Full Lip Square Corner
Backset Size
2-3/8 x 2-3/4"
Height
3.88
Length
16.25
Width
8.00
Country Origin Code
MX
Sub-Series
RL_Handlesets_schlage_residential_3
Box Dimensions (L x W x H)
3.9x7.97x16.25"
Door Edge Bore
1 Inch
Inside Trim Function
F59 Inside Trim
Manufacturer Parent
Allegion
Finish Family
Antique Bronze
Features
Door Frame Reinforcer With 3" Screws; Adjustable Throughbolt can Move Up and Down 1-1/2" to Fit a Variety of Pre-Existing Holes; Pair With An F59 for a Complete Handleset
Function Family
Handleset Exterior
Standards
ANSI/BHMA A156.36-2016; ANSI/BHMA A156.40-2015
Warranty
Lifetime Limited Mechanical/Finish
Backset
2-3/4", 2-3/8"
Cylinder Included
Yes
Strike Size
2-1/4" x 1-5/8"
Alternate Part Number-1
143929
Restricted Keyway
No
Latch Bolt Type
Deadbolt
Knob/Lever Design
Camelot
Latch Bolt Faceplate Size
1"x 2-1/4"
Door Bore Size
2-1/8"
Lock Category
Handlesets
Door Thickness Min
1-5/8"
Latch Bolt Face Type
Triple Option-Round, Square, Drive-in
Latch Bolt Throw
1/2"
Door Thickness Max
1-3/4"
Knob/Lever Style
Handleset
Your front door is more than just an entrance, it's also a showpiece – one of the first things a guest sees. That's why it’s important to choose the right handleset. Schlage offers a wide variety of designs and finishes, from angular to flowing, classic to contemporary, all designed to ensure that your front door is the perfect introduction to your home.
Available Functions: F58 – Handleset/Entrance Lock Exterior:- Outside grip and deadbolt trim of F60
- Pair with an F59 for a complete handleset
- Inside trim, deadbolt thumbturn, latches, strikes & screws for F60
- Pair with an F58 for a complete handleset
- Deadbolt thrown or retracted by key from outside or by inside thumbturn
- Latch retracted by thumbpiece from outside or by inside knob/lever
- Deadbolt thrown or retracted by key from either side
- Latch retracted by thumbpiece from outside or by inside knob/lever
- Outside inactive grip & dummy deadbolt
- Pair with an F94 for a complete inactive handleset
- Inside inactive knob/lever, blank deadbolt trim & screws
- Pair with an F92 for a complete inactive handleset
- For use as door pull or as decorative trim on inactive leaf of pair of doors
- Fixed thumbpiece and inside knob/lever
- Decorative deadbolt with inside trim
- Combine with Electronic Deadbolt for complete
Front Entry Set - Latch retracted by thumbpiece from outside or by inside knob/lever
- *CAUTION: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
- 12-322 - Dual Option - Round Corner + Drive-in
(16-080 + 12-321) - 12-326 - Triple Option - Round Corner + Square Corner + Drive-in (16-210 + 12-287) Standard
- 12-353 - F60/62 UL Listed, 1" Square Corner
- 12-354 - F60/62 UL Listed, 1" Round Corner
- 10-115 - Round Corner Full Lip Strike Set (10-027 + 10-116)
- 10-269 - Round Corner Strike Set (10-026 + 10-027 + 10-116) Standard
- ANSI/BHMA A156.36-2016 Commercial Grade 1
- ANSI/BHMA A156.40-2015 Residential Grade AAA
- 1" x 2 1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw springlatch
- 1" x 2 1/4", 1/4" radius corner faceplate, 1" housing diameter, 1" throw, latchset number 12-321
- Part 10-269, includes: 1 1/4" radius corner deadbolt strike (10-116), radius round corner full lip strike (10-027)
- Door frame reinforcer with 3" screws
- Universal backset latch and deadbolt, fits either 2 3/8" or 2 3/4" backsets
- 5-Pin, keyed 5-Pin, C keyway, keyed different (KD)
- 1 5/8" - 1 3/4"
- Two cut keys per lock, 5-pin, C section
- Adjustable throughbolt can move up and down 1 1/2" to fit a variety of pre-existing holes
- Locks are furnished with standard features unless otherwise specified To order locks with non-standard features specify non-standard feature desired
- *Thick door kit available for door thicknesses up to 2 1/4" See Parts sections for item number and pricing
- Lifetime Bright Brass
- Bright Brass (US3)
- Satin Brass
- Antique Brass (US5)
- Oil-Rubbed Bronze (US10B)
- Polished Nickel
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Distressed Nickel
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Aged Bronze
- Non-standard finishes are not available.
- Full-color swatch examples available on inside Handleset tab.
