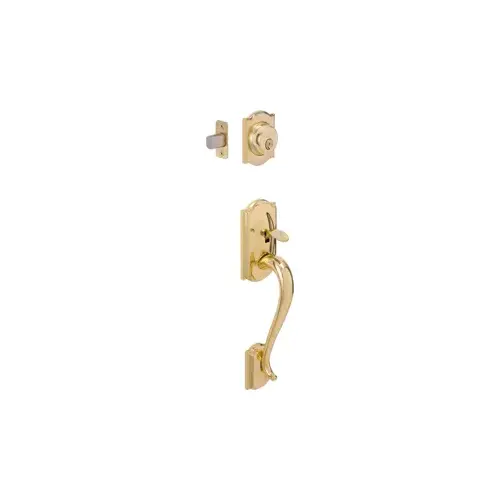

Schlage Residential F58 CAM 605Click To Copy Camelot Exterior Active Handleset Only with C Keyway Bright Brass Finish

F SeriesHandlesets

Your front door is more than just an entrance, it's also a showpiece – one of the first things a guest sees. That's why it’s important to choose the right handleset. Schlage offers a wide variety of designs and finishes, from angular to flowing, classic to contemporary, all designed to ensure that your front door is the perfect introduction to your home.

Available Functions: F58 – Handleset/Entrance Lock Exterior:

• Outside grip and deadbolt trim of F60
• Pair with an F59 for a complete handleset

F59 – Handleset/Entrance Lock Interior:

• Inside trim, deadbolt thumbturn, latches, strikes & screws for F60
• Pair with an F58 for a complete handleset

F60 – Single Cylinder Deadbolt/Entrance Lock:

• Deadbolt thrown or retracted by key from outside or by inside thumbturn
• Latch retracted by thumbpiece from outside or by inside knob/lever

F62 – Double Cylinder Handleset/Entrance Lock*:

• Deadbolt thrown or retracted by key from either side
• Latch retracted by thumbpiece from outside or by inside knob/lever

F92 – Inactive Handleset Exterior:

• Outside inactive grip & dummy deadbolt
• Pair with an F94 for a complete inactive handleset

F94 – Inactive Handleset Interior:

• Inside inactive knob/lever, blank deadbolt trim & screws
• Pair with an F92 for a complete inactive handleset

F93 – Inactive Handleset:

• For use as door pull or as decorative trim on inactive leaf of pair of doors
• Fixed thumbpiece and inside knob/lever
• Decorative deadbolt with inside trim

FE285 - Lower Half - Front Entry Set:

• Combine with Electronic Deadbolt for complete
  Front Entry Set
• Latch retracted by thumbpiece from outside or by inside knob/lever

• *CAUTION: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Latches & Strikes: Latches:

• 12-322 - Dual Option - Round Corner + Drive-in
  (16-080 + 12-321)
• 12-326 - Triple Option - Round Corner + Square Corner + Drive-in (16-210 + 12-287) Standard
• 12-353 - F60/62 UL Listed, 1" Square Corner
• 12-354 - F60/62 UL Listed, 1" Round Corner

Strikes:

• 10-115 - Round Corner Full Lip Strike Set (10-027 + 10-116)
• 10-269 - Round Corner Strike Set (10-026 + 10-027 + 10-116) Standard

Specifications: Certification:

• ANSI/BHMA A156.36-2016 Commercial Grade 1
• ANSI/BHMA A156.40-2015 Residential Grade AAA

Latch:

• 1" x 2 1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw springlatch

Deadbolt:

• 1" x 2 1/4", 1/4" radius corner faceplate, 1" housing diameter, 1" throw, latchset number 12-321

Strike:

• Part 10-269, includes: 1 1/4" radius corner deadbolt strike (10-116), radius round corner full lip strike (10-027)

Reinforcement:

• Door frame reinforcer with 3" screws

Backset:

• Universal backset latch and deadbolt, fits either 2 3/8" or 2 3/4" backsets

Cylinder:

• 5-Pin, keyed 5-Pin, C keyway, keyed different (KD)

Door Range*:

• 1 5/8" - 1 3/4"

Keys:

• Two cut keys per lock, 5-pin, C section

Adjustable Throughbolt:

• Adjustable throughbolt can move up and down 1 1/2" to fit a variety of pre-existing holes

• Locks are furnished with standard features unless otherwise specified To order locks with non-standard features specify non-standard feature desired
• *Thick door kit available for door thicknesses up to 2 1/4" See Parts sections for item number and pricing

Finishes: 505:

• Lifetime Bright Brass

605:

• Bright Brass (US3)

608:

• Satin Brass

609:

• Antique Brass (US5)

613:

• Oil-Rubbed Bronze (US10B)

618:

• Polished Nickel

619:

• Satin Nickel (US15)

620:

• Antique Pewter (US15A)

621:

• Distressed Nickel

622:

• Matte Black (US19)

625:

• Bright Chrome (US26)

626:

• Satin Chrome (US26D)

716:

• Aged Bronze

• Non-standard finishes are not available.
• Full-color swatch examples available on inside Handleset tab.
