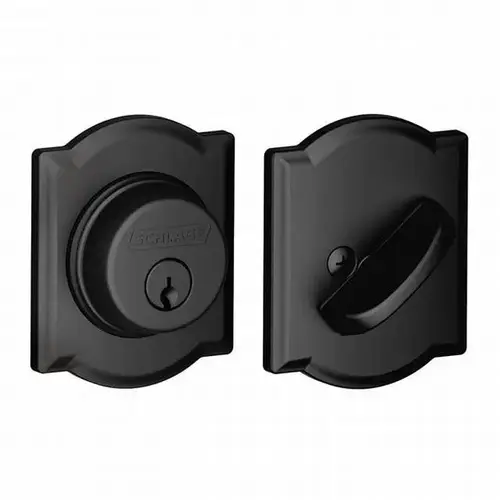

Schlage Residential B60 CAM 622 Camelot Single Cylinder Deadbolt C Keyway with 12287 Latch and 10116 Strike Matte Black Finish
Item #: B60 CAM 622 by Schlage Residential
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Easy Installation: One-Person Project; No Extra Hands Needed
- Biggest Adjustable Bolt Available
- Applications: Residential single- and multi-family doors
- Pick and Bump Resistant
- Adjusts to Fit All Standard Door Preparations
- Certifications: Meets Grade 1 BHMA requirements
- U.L. Listed: Locks for up to three-hour fire doors available
- Lifetime Mechanical & Finish Warranty
- Quality Finishes for Lasting Beauty
- Unique Snap & Stay Design
- Keying: 5-pin tumbler C keyway standard, with two brass keys. 6-pin cylinder available.
- Single Cylinder. Deadbolt - Unlocked by Key from Outside or by Inside Thumbturn
- Door thickness range: 1-3/8” to 1-3/4” (5mm-51mm) standard.
- Backset: Universal deadbolts fit 2-3/8” or 2-3/4” backset
Finish
Matte Black
Function
Single Cylinder
Design
Camelot
Strike
Round Corner Deadbolt Strike
Backset
Triple Option Adjustable Deadbolt, 2-3/8" or 2-3/4" Backset
Thickness
1-3/8 In. - 1-3/4 In.
Color
Flat Black Coated
ANSI Function
E2152 - Single Cylinder Deadbolt
Special Marks
Conventional cylinder
Cylinder Type
Conventional Cylinder
Package Qty
1
Color Code
622/US19
Rose/Escutcheon Design
CAM - Camelot
Base Material
Brass or Bronze
Keyway
C
Handing
Reversible
Deadbolt, Single Cylinder, Camelot Trim, Black
With premium metal construction and plated keyways, Schlage mechanical deadbolts are made with durability in mind. Combine our wide range of unique finish and style options with our easy one-tool installation and you can give your door a stylish makeover in minutes.
Easy installation: One-person project; no extra hands needed.
Grade 1 certified deadbolts that feature an exclusive patented steel strike reinforcer.
