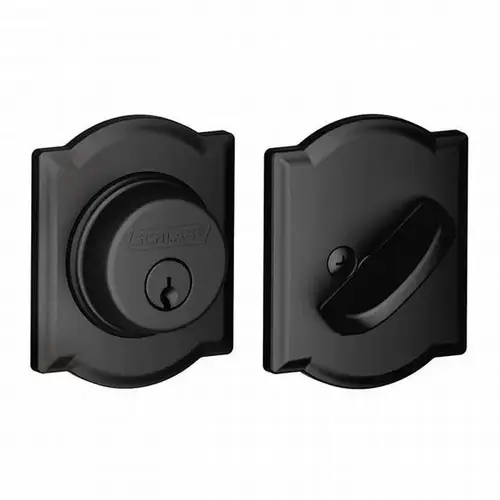

Camelot Single Cylinder Deadbolt C Keyway with 12287 Latch and 10116 Strike Matte Black Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Schlage Residential B60 CAM 622 Camelot Single Cylinder Deadbolt C Keyway with 12287 Latch and 10116 Strike Matte Black Finish

Item #: B60 CAM 622 by Schlage Residential

Brand: Schlage Residential

UPC #: 194555190801

See reviewsSee reviews
See reviews summary
In Stock

$93.81

115.00 /each
SAVE UP TO 9.38
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 40 units available

Finish: Flat Black Coated

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Easy Installation: One-Person Project; No Extra Hands Needed
  • Biggest Adjustable Bolt Available
  • Applications: Residential single- and multi-family doors
  • Pick and Bump Resistant
  • Adjusts to Fit All Standard Door Preparations
  • Certifications: Meets Grade 1 BHMA requirements
  • U.L. Listed: Locks for up to three-hour fire doors available
  • Lifetime Mechanical & Finish Warranty
  • Quality Finishes for Lasting Beauty
  • Unique Snap & Stay Design
  • Keying: 5-pin tumbler C keyway standard, with two brass keys. 6-pin cylinder available.
  • Single Cylinder. Deadbolt - Unlocked by Key from Outside or by Inside Thumbturn
  • Door thickness range: 1-3/8” to 1-3/4” (5mm-51mm) standard.
  • Backset: Universal deadbolts fit 2-3/8” or 2-3/4” backset

Finish

Matte Black

Function

Single Cylinder

Series

B60 Series

Design

Camelot

Strike

Round Corner Deadbolt Strike

Backset

Triple Option Adjustable Deadbolt, 2-3/8" or 2-3/4" Backset

Thickness

1-3/8 In. - 1-3/4 In.

Color

Flat Black Coated

ANSI Function

E2152 - Single Cylinder Deadbolt

Special Marks

Conventional cylinder

Cylinder Type

Conventional Cylinder

Package Qty

1

Number of Pins

5-Pin

Color Code

622/US19

Rose/Escutcheon Design

CAM - Camelot

Base Material

Brass or Bronze

Keyway

C

Handing

Reversible

No Of Pins

5 Pin Cylinder

No of inners

1

Latch Faceplate Dimension

1" x 2-1/4"

Finish code

622

Cross Bore Size

1-1/2" or 2-1/8" Bore

Strike Dimension

1-1/8" x 2-3/4"

Hazardous Material

No

Door Range

1-3/8" to 1-3/4"

Manufacturer Warranty

Limited Lifetime Mechanical and Finish Warranty

Door Thickness

1-3/8" to 1-3/4"

Material

Zinc

Dimension

2-11/16" x 3-5/16"; 1" Projection

Grade

Grade 1

ANSI/BHMA Standards

E2152 - Deadlock, Single Cylinder

Keyed

Yes

Keying

None (Select for Less Cylinder Options)

Latch Throw

1"

Electronic

No

Door Handing

Non-Handed

Standard Strike

10-116: Round Corner Strike with Reinforcer, 2-3/4" x 1-1/8"

Keys Included

2

Door Thickness Range

1-3/8" To 1-3/4"

Standard Cylinder

Single 5 Pin Cylinder, C Keyway

Standard Latch

12-321: Dual Option Latch, Adjustable 2-3/8" and 2-3/4" Backset

Projection

1"

Product Overview

Deadbolt, Single Cylinder, Camelot Trim, Black

With premium metal construction and plated keyways, Schlage mechanical deadbolts are made with durability in mind. Combine our wide range of unique finish and style options with our easy one-tool installation and you can give your door a stylish makeover in minutes.

Easy installation: One-person project; no extra hands needed.

Grade 1 certified deadbolts that feature an exclusive patented steel strike reinforcer.
