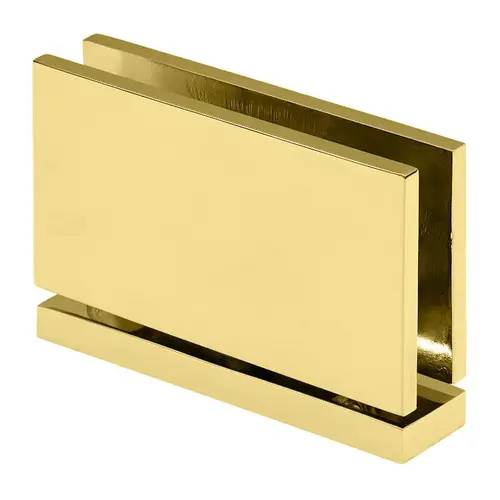

CRL CAR01ULBR Unlacquered Brass Cardiff Series Top Or Bottom Mount Hinge, Brass Material, Head And Sill Mount, Square Edge Profile
Item #: CAR01ULBR by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from solid brass with an unlacquered brass finish, providing a classic look for bathroom shower enclosures.
- Designed for 5/16" to 3/8" tempered safety glass, suitable for various shower door configurations.
- Features a top and bottom mount design that allows for more glass visibility and requires fewer cut-outs.
- Self-centering mechanism engages when the door is within 15 degrees of the closed position for consistent operation.
- Supports a maximum door weight of 100 lbs and a maximum door width of 31" when using two hinges.
- Pivot-style hinge allows for inset mounting from the wall, providing clearance for towel bars and other projections.
- Includes gaskets, screws, and glass fabrication dimensions for installation in corner, niche, or custom shower enclosures.
Finish
Unlacquered Brass
Maximum Door Weight - 2 Hinges
100 Lbs.
Self-Centering
Yes
Series
Cardiff
Finish/Color
Unlacquered Brass
Edge Profile
Square
Maximum Door Width
31
Glazing Thickness
5/16 To 3/8
Material
Brass
Mounting Type
Head & Sill Mount
Maximum Door Weight
100
Mounting Style
Head & Sill Mount
Opening Style
Pivot(floor)
Enclosure Type
Corner, Niche, Tailor Made Solutions
Design Style
Squared
Product Overview
The Unlacquered Brass Cardiff Series Top or Bottom Mount Hinge is a pivot-style hinge designed for use with 5/16" to 3/8" tempered safety glass in shower enclosures. This hinge is constructed from solid brass and features a square edge profile. The top and bottom mount design allows for a greater amount of glass to be visible and reduces the number of cut-outs required compared to standard side-mount hinges. This hinge can be mounted to the floor and ceiling or floor and header, and it is adaptable to the Deluxe Header System for enclosures that do not reach the ceiling. The Cardiff Series hinge is self-centering when within 15 degrees of the closed position and utilizes four springs for retention. When using two hinges, the system supports a maximum door weight of 100 lbs and a maximum door width of 31". The hinge allows for full rotation and can be inset from the wall to provide clearance for towel bars and other projections. The package includes gaskets, screws, and glass fabrication dimensions. The unlacquered brass finish provides a classic aesthetic that may develop a patina over time.
