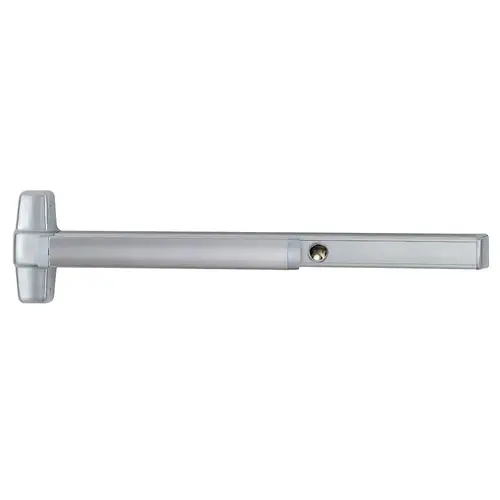

Von Duprin CD9848L-BE-18 3 US28 LHR Von Duprin Concealed Vertical Rod Exit Devices Satin Aluminum Clear Anodized

Item #: CD9848L-BE-18 3 US28 LHR by Von Duprin

See reviewsSee reviews
In Stock

$2,964.96

/each
SAVE UP TO 296.50

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm)
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking top bolt, 3/4" (19mm) throw Deadlocking bottom bolt, 1 1/2" (38mm) throw
  • Door undercut: 3 /4" (19mm) maximum, more than 1 /4" minimum
  • Top & bottom Latch case: 4 1/4" x 1 1/2" x 1 1/8" (107mm x 38mm x 28mm)
  • Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.

Trim Design

18-Lever

Color

Satin Aluminum Clear Anodized

Physical Appearance

Wide Stile Pushpad

Hand

LHR

Grade

Grade 1

Fire Rated

No

Device Type

Concealed Vertical Rod

Package Qty

1

Includes Trim

Yes

Device Length

36 In.

Trim Type

Passage Lever

Color Code

628/US28

Dogging Options

Cylinder Dogging

Base Material

Aluminum

Handing

Left Hand Reverse

Package Width

5

Package Volume

1942.5

Package Length

37

Package Height

10.5

BAA Qualified

Yes

Origin

USA

Product Overview

Concealed Vertical Rod Exit Device, Blank Escutcheon Lever Trim, Cylinder Dogging, Satin Aluminum Clear Anodized

9848/9948 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. Covers stock hollow metal doors with 86 or 161 cutouts. Devices are ANSI A156.3 - 2008 Grade 1. The 9848 device has a smooth mechanism case and the 9948 device has a grooved case. The concealed vertical rod device is non-handed except when the following device options are used:SD (special dogging), or SS (signal switch).

The 9848 Series has a smooth mechanism case that is non-handed with some exceptions.

The 9848 Concealed verticle rod device is for use on single or double metal doors and is UL listed for panic exit hardware.
