Features
- BHMA Grade: Grade 1
Weight
Heavy Duty
Restrictions
Oversized
Bearing Type
Continuous Gear
Hinge Type
Continuous Hinge, Full Mortise
Finish
Clear Anodized Aluminum
Length
83"
Door Thickness
1 3/4"
Function
Continuous Hinge
Finish Description
Clear Anodized Aluminum
Product Length
83 Inch
ADA Compliant
No
Finish Family
Aluminum
Hinge Size
83 Inch
Product Material
Aluminum
Function Family
Hinge/Pivot
Features
Heavy Duty, Grade 1 3" Bearing Space
Product Type
Hinge/Pivot
Series
CFM Series
Manufacturer Parent
Assa Abloy
Sub-Series
CFM83RG-HD1
Slug
3074457345618643398
OriginalName
Pemko FM_RG Raise Gear Hinge, HD1
Product ID
3074457345618643398
Discount
50.0%
Price Adjustment
$15.38
BHMA Grade
Grade 1
Length - Normalize
83"
Grade
Grade 1
Product Overview

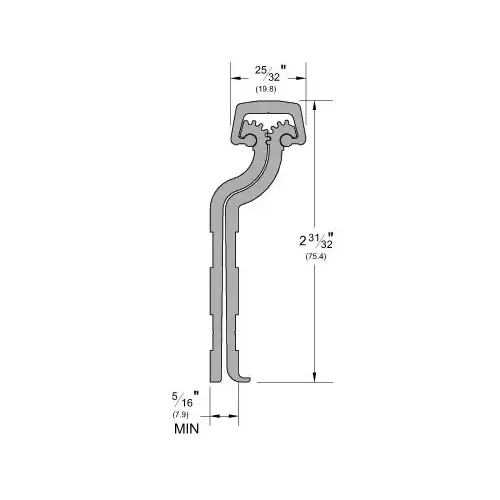

FM-RG Series
The FM-RG Series Full Mortise Raised Geared Hinge is designed for wood or metal cased openings when hinge is to be installed deep on the rabbet. This hinge is available in a heavy duty model and features leaves designed to allow for the hinge to pivot without interference from the cap.
Features
- For wood or metal frames with applied facing or other decorative moldings
- Heavy duty version available
- Conceals both leaves
- Wood screws available on request
- Custom lengths available
- Special FirePins are only required on 3-Hour (A-Label) assemblies
- Certain door and frame conditions may require an extra 1/32"-1/16" clearance
- Excessive clearance on fire rated assemblies may violate the requirements for NFPA 80
Benefits
- Special hinge reinforcements are not required
- Removal of hinge reinforcements in the door and frame is not advised
- Hollow metal door and frame manufacturers standard is acceptable
- Guaranteed for the life of the opening against defects in material or workmanship (HD only)
Specifications
- Grade: Grade 1
- Hinge Material: Aluminum
- Hinge Mounting Type: Full Mortise
- Hinge Strength: Heavy Weight
- Handing: Non-handed
- Fastener: Teks
- Fastener Type: Self Drilling
- Maximum Door Thickness: 1 3/4"
- Minimum Door Thickness: 1 3/4"
- Maximum Door Width: 4'
- Maximum Hinge Length: 10'
- Minimum Length: 79"
- Maximum Swing: 180 degree
- Minimum Hinge Clearance: 5/16"
- Weight: 1.15lbs. per foot
Certifications
- Health Product Declaration (HPD)
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- ANSI/BHMA Standard A156.26
