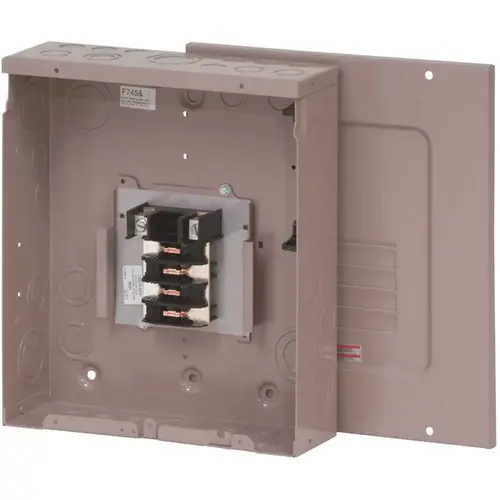

Eaton CH8L125SP CH 125 Amp 8-Space 16-Circuit Indoor Main Lug Loadcenter with Cover Gray

Item #: CH8L125SP by Eaton Corporation

UPC #: 782114190531

See reviewsSee reviews
See reviews summary
In Stock

$81.73

/each
SAVE UP TO 8.17
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 37 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Voltage

120/240

Mounting Type

Surface

Number of Outlets

0

Warranty

Limited lifetime

Amperage

125 Amp

Phase

1

Manufacturer Warranty

Limited Lifetime

Certifications and Listings

ANSI Certified, UL Listed

Indoor/Outdoor

Indoor

Load Center Type

Main Lug

Load center width (in.)

9.5

Maximum Amperage

125

Maximum Voltage

120/240 Volt

Number of Circuits

16

Number of Phases

1

Number of Spaces

8

Pack Size

1

UNSPSC

39121101

Height

13"

AMPS

125 amps

Volts

120/240 V

Depth

3-11/16"

Width

11"

UL Listed

Yes

Packaging Type

Boxed

Indoor or Outdoor

Outdoor

Breakers Included

No

Circuit Protection Type

Main Lug

Defective Code

A

Each Weight

9.100 LB

Hazardous Material

No

Maximum Number of Circuits

8 circuits

Returnable

Yes

Sub Brand

Cutler-Hammer

Velocity

D

Product Type

Main Lug Load Center

Wire Size

#6 To 1/0

Width (in)

11

Depth (in)

3.69

Height (in)

13

Certification

UL Listed

Enclosure Type

Indoor

Series

CH

Mount Type

Surface

Max Number of Poles

8

MADE IN THE USA

Yes

Package Quantity

1

Color

Gray

For Use With

Service entrance equipment

Recommended Environment

Indoor

Assembled Product Depth

13 in.

AbilityOne

No

ADA Compliant

No

Electrical Box Type

Load Center

NEMA Rating

1

Circuit Breaker Type

Type CH Circuit Breaker

Assembled Product Height

3.69 in.

Mounting Location

Surface

Material

Aluminum

Features

Overhead or underground

Assembled Product Width

11 in.

GSA Approved

No

TAA/BAA Compliant

Yes

Product Overview

Specially designed for easy installation, Eaton's CH load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. Sub panels are often used in a garage, home addition, barn or storage shed and/or workshop. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The CH8L125SP is a 125 Amp main lug with 8 spaces and 8 circuits.

  • Amperage rating: 125
  • Bus material: copper
  • Rated NEMA 1 for indoor use
  • Feed type: overhead or underground
  • Number of circuits: 16
  • Number of spaces: 8
  • Phase: single-phase
  • Voltage rating: 120/240
  • Wire size: #6-1/0
  • Tangential center knockout easier installation for conduit applications
  • Steel back pan provides solid and reliable breaker mounting single piece design for stability and durability
  • Single keyhole mounting - 1 keyhole at the top provides easier mounting and leveling
  • Drywall marking on enclosure - indicates proper mounting depth for flush applications
  • Used with: type CH breakers
