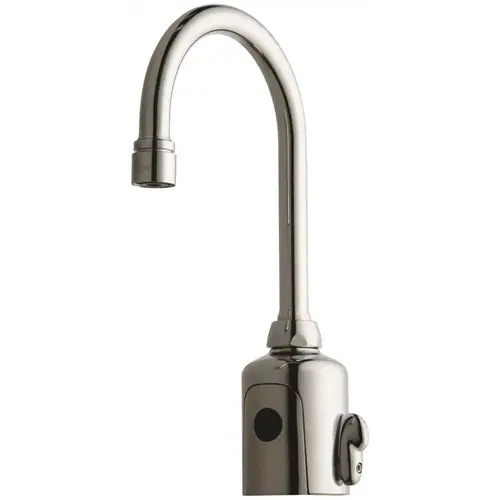

Chicago Faucets 116.223.AB.1T Touch-Free Program Faucet Above-Deck Electronics 116.223.ab.1t Chrome

Item #: 116.223.AB.1T by Chicago Faucets

UPC #: 500226046238

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$1,118.12

/each
SAVE UP TO 111.81
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 24 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Pack Size

1

Faucet Spout Height

6-7/8 in.

MADE IN THE USA

Yes

Finish

Chrome

Supply Inlet Type

Braided Flexible

Package Quantity

1

UL Listed

No

CA AB100 Compliant

True

Ligature Resistant

False

Faucet Spout Type

Swivel

Metered

True

Connection Size

3/8 in.

Installation Type

Quick Install

WaterSense Labeled

Yes

Faucet Finish

Polished Chrome

Faucet Material

Brass

Pop Up Drain Included

False

AbilityOne

No

ADA Compliant

YES

UNSPSC

30181701

Integrated Supply Lines

True

Valve Included

True

Commercial/Residential

Commercial

Maximum Deck Thickness

1-1/2 in.

Number of Handles

0

Number of Faucet Holes

1

Mounting Location

Deck

Deckplate Included

Deckplate Not Included

Drain Included

False

Faucet Handle Type

Touchless

Faucet Spout Reach

5-3/8 in.

GSA Approved

No

Faucet Flow Rate

0.5 GPM

TAA/BAA Compliant

Yes

Handle Material

Brass

Product Overview

Chicago Faucets Touch-Free Program Faucet Above-Deck Electronics 116.223.Ab.1T

  • Touch-Free, Programmable Faucet With Above-Deck Electronics
  • 5-1/4" rigid/swing gooseneck spout (GN2AH8JKABCP)
  • Pressure compensating Econo-Flo„¢ non-aerating laminar spray outlet with adapter 0.5 GPM (E2805-5JKABCP)
  • User temperature control handle kit, rounded (240.746.AB.1)
  • HyTronic® module kit with Bluetooth® communication (242.433.00.1T)
  • User adjustable temperature control mixer included
  • Single hole (4" and 8" deck plates available, see Accessories)
  • Internal Antenna Specifications: Peak Gain of the antenna: ”€5.47 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC01
  • 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds. Reactivate faucet by removing hands from the sensor for at least 10 seconds.
  • 6 volt lithium CRP2 battery included
  • Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App.
  • Dual supply for hot and cold water; flexible supply hoses included
  • Polished chrome
  • Mfg #116.223.AB.1T
  • Touch-Free, Programmable Faucet With Above-Deck Electronics
  • 5-1/4" rigid/swing gooseneck spout (GN2AH8JKABCP)
  • Pressure compensating Econo-Flo„¢ non-aerating laminar spray outlet with adapter 0.5 GPM (E2805-5JKABCP)
  • User temperature control handle kit, rounded (240.746.AB.1)
