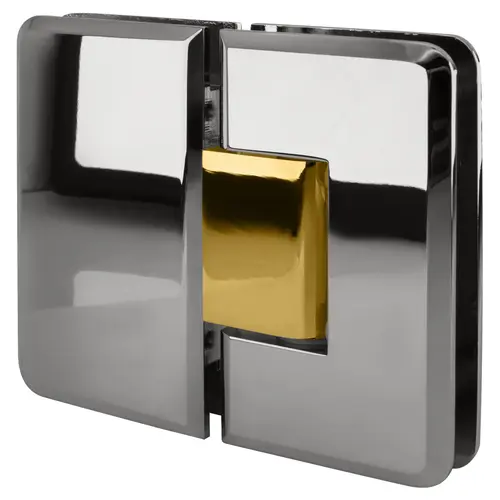

CRL C0L180CBA 180 Degree Glass-To-Glass Hinge, Brass Material, 3/8" To 1/2" Glazing Thickness, Chrome and Brass Accents Finish
Item #: C0L180CBA by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from solid brass with a Chrome and Brass Accents finish, providing a functional component for glass shower door installations.
- Measures 2-1/4" in width for both door and sidelite portions, designed for 180-degree glass-to-glass mounting configurations.
- Compatible with 3/8" to 1/2" tempered safety glass, suitable for various residential and hotel shower enclosure applications.
- Features a self-centering mechanism that activates within 15 degrees of the closed position for consistent door alignment.
- Supports a maximum door weight of 110 lbs with 2 hinges or 140 lbs with 3 hinges, accommodating door widths up to 36".
- Includes a reversible pivot pin allowing for a standard 90-degree or 85-degree closure, with options for custom pivot pins.
- Supplied with gaskets, screws, and glass fabrication dimensions, requiring a maximum clamping screw torque of 60 lbf.in.
Shipping Weight
2 lb (907g)
Width
2-1/4" (57 mm)
Height
3-15/16" (100 mm)
Finish
Chrome/brass
Product Overview
The Chrome and Brass Accents Cologne 180 Series 180 degree Glass-to-Glass Hinge is a component for mounting glass shower doors in niche, bathtub, and custom enclosures. Constructed from solid brass, this hinge features beveled edges and radius corners for a clean appearance. It is designed for 3/8" to 1/2" tempered safety glass. The hinge supports a 180-degree glass-to-glass angle and allows for 90-degree inward and 90-degree outward swings. It includes a self-centering mechanism that engages when the door is within 15 degrees of the closed position. The hinge features a reversible pivot pin, with one side marked at 90 degrees and the other at 85 degrees, allowing for a 5-degree tighter closure. Two steel pins inside the hinge provide template options for either mouse-ear or rectangular cut-outs. When using two hinges, the assembly supports a maximum door weight of 110 lbs and a maximum door width of 36". With three hinges, the capacity increases to 140 lbs with a maximum door width of 36". The hinge has a width of 2-1/4" for both the door and sidelite portions. It requires a maximum clamping screw torque of 60 lbf.in. The package includes gaskets, screws, and glass fabrication dimensions. The Chrome and Brass Accents finish provides a consistent aesthetic for bathroom hardware.
