For glass-to-glass 90 degree return applications. CRL Brass Double Glass-to-Glass 90 Degree Return Hinges are made of forged brass construction with a screw attachment feature. Clear vinyl pad inserts protect glass. Available in polished brass with lacquered finish or chrome plated. Requires four 1/2" (12 mm) holes in glass for mounting. The maximum recommended door width is 22" (559 mm). Maximum weight should not exceed 30 lbs. (13.6 kg).
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

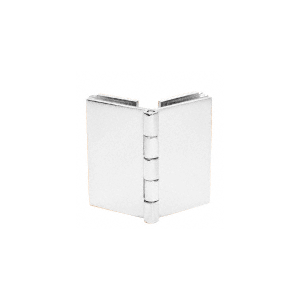

CRL EH254 Chrome Double Glass-to-Glass 90 Degree Return Hinge - pack of 2
Item #: EH254 by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For 1/4" to 5/16" (6 to 8 mm) Glass
- Four 1/2" (12 mm) Holes Required
- Two Per Package
Shipping Weight
1 lb (454g)
Finish
Polished Chrome
Height
2-11/32
Finish/Color
Polished Chrome
Maximum Door Width
22
Glazing Thickness
1/4 To 5/16
Width
1-9/16
Material
Brass
Weight Capacity
30
Product Overview
For glass-to-glass 90 degree return applications. CRL Brass Double Glass-to-Glass 90 Degree Return Hinges are made of forged brass construction with a screw attachment feature. Clear vinyl pad inserts protect glass. Available in polished brass with lacquered finish or chrome plated. Requires four 1/2" (12 mm) holes in glass for mounting. The maximum recommended door width is 22" (559 mm). Maximum weight should not exceed 30 lbs. (13.6 kg).
