Chrome Elite 074 Series Wall Mount Short Back Plate Hinge

Roll over image to zoom in

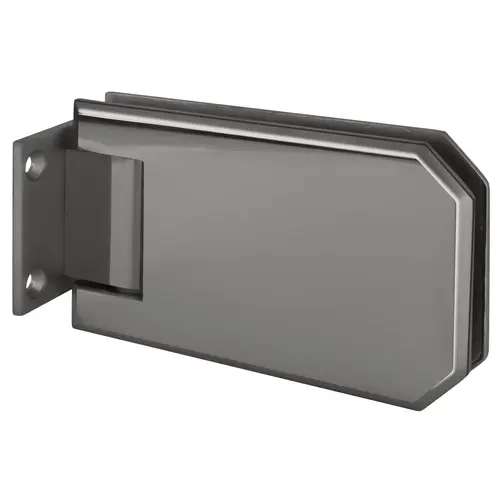

CRL ELT074CH Chrome Elite 074 Series Wall Mount Short Back Plate Hinge

Item #: ELT074CH by CR Laurence

Item Discontinued!
See reviews See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • For Wider and Heavier Doors
  • Ability to be Side Mounted at Top and Bottom Corners
  • Wall Mount
  • Use Monolithic Tempered Glass

Length

5" (127 mm)

Height

3

Width

5

Finish

Chrome

Back Plate

Short

Glazing Thickness

3/8, 1/2

Maximum Door Width

34

Edge Profile

Beveled

Adjustable

No

Finish/Color

Polished Chrome

Self-Centering

Yes

5 Degree Pre-Set

No

Maximum Door Width - 3 Hinges (Inches)

38

Maximum Door Weight - 3 Hinges (Pounds)

140

Maximum Door Weight - 2 Hinges (Pounds)

110

Mounting Type

Wall Mount

Material

Brass

Maximum Door Width - 2 Hinges (Inches)

34


The CRL Elite Series is a premium hinge for wider and heavier glass doors. Unlike most other hinges, the Elite can be side mounted on the top and bottom corners of the door, or anywhere in between. Containing a positive three-screw clamping system, the Elite Hinge incorporates a cut-out and through-stud that eliminates slippage. The Elite features the same 5 degree Reversible Pivot Pin used in our Geneva, Cathedral, Pinnacle, Roman, and Ultimate Series Hinges. It can also use the "GENP1N" Custom Pivot Pin for "off-angle" installations.
STANDARD REVERSIBLE PIVOT PIN: Each Roman Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Roman Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.
CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).
Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 34" (864 mm).
Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (64 kg) with a maximum door width of 38" (965 mm).
SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Has the ability to be side mounted at the top and bottom corners of the door, or anywhere in between. Corner mounting allows more glass exposure.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out and Hole Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Custom finishes are available on request. Contact the DK Hardware Sales Shower Door Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

.
