- Wall Mount Full Back Plate
- Precise Closing Feature to Zero Degrees
- Available in Several Beautiful Finishes

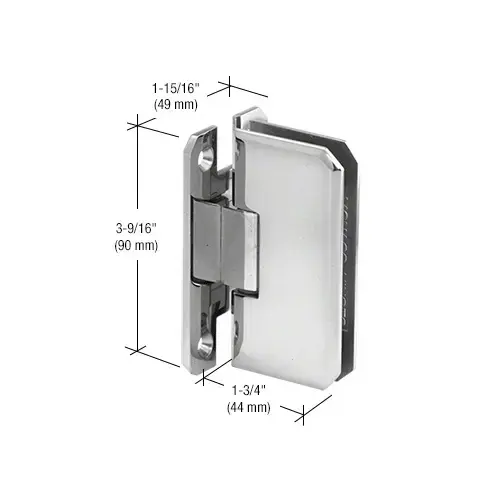

3-9/16" (90 mm)
1-3/4" (44 mm)
Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 55 lbs. (25 kg) with a maximum door width of 31" (787 mm).
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 82 lbs. (37 kg) with a maximum door width of 34" (864 mm).
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Hinge plates are 25% thicker than competitive hinges, thereby reducing deflection and providing greater holding power.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out (Except M0N045, M0N054, M0N135, M0N181, M0N182, M0N183, and M0N244)
Closing Type: Precise Closing to 0 degree
Cut-Out Required (Except M0N181, M0N182, M0N183, and M0N244, Which Require Holes Only)
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales Department. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
