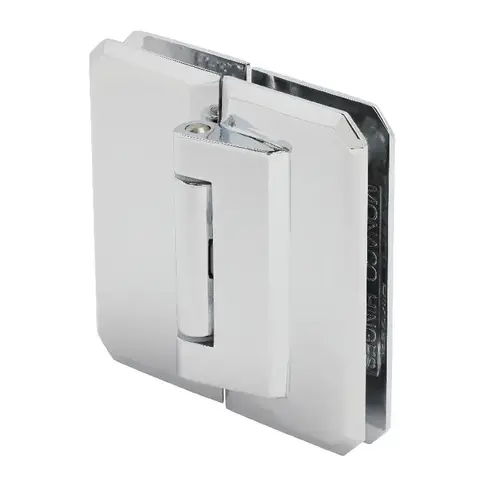

CRL M0N181CH Chrome Monaco 181 Series 180 Degree Glass-to-Glass Hinge Swings Out Only
Item #: M0N181CH by CR Laurence
See reviews See
reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 180 Degree Glass-to-Glass (Door Swings 180 Degree Out Only)
- Requires Holes Only, No Cut-Out! Provides Added Adjustment Room
- Precise Closing Feature to Zero Degrees
Height
3-9/16
Width
1-3/4" (44 mm)
Finish
Chrome
Edge Profile
Beveled
Maximum Door Width - 3 Hinges (Inches)
34
Mounting Type
Glass To Glass
Maximum Door Weight - 3 Hinges (Pounds)
82
Maximum Door Weight - 2 Hinges (Pounds)
55
Width - Sidelite Portion (Inches)
1-3/4
Width - Door Portion (Inches)
1-3/4
Glazing Thickness
1/4 To 5/16
Material
Brass
Glass To Glass Angle (Degrees)
180
Finish/Color
Polished Chrome
Maximum Door Width - 2 Hinges (Inches)
31
The CRL Monaco Series introduces charm, richness, and character to the choice of frameless shower door hinges using 1/4" (6 mm) to 5/16" (8 mm) safety glass. Available in five Wall Mount and six Glass-to-Glass styles, Monaco Hinges present numerous design and configuration options. Aesthetically pleasing beveled edges and corners give Monaco Hinges the look many architects and designers desire. Three distinct models stand out in the Monaco Series: The M0N244 and M0N044 models are Flush Back Plate Wall Mount Hinges that provide a clean exterior sight line because the mounting plate is visible only from the inside of the shower; the M0N181 Glass-to-Glass Hinge is used to mount a door to a fixed panel of glass in a 180 degree plane, and allows the door to swing out 180 degree and fold back on itself.
Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 55 lbs. (25 kg) with a maximum door width of 31" (787 mm).
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 82 lbs. (37 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Hinge plates are 25% thicker than competitive hinges, thereby reducing deflection and providing greater holding power.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out (Except M0N045, M0N054, M0N135, M0N181, M0N182, M0N183, and M0N244)
Closing Type: Precise Closing to 0 degree
Cut-Out Required (Except M0N181, M0N182, M0N183, and M0N244, Which Require Holes Only)
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
For more information contact CRL Shower Door Technical Sales Department.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
.
