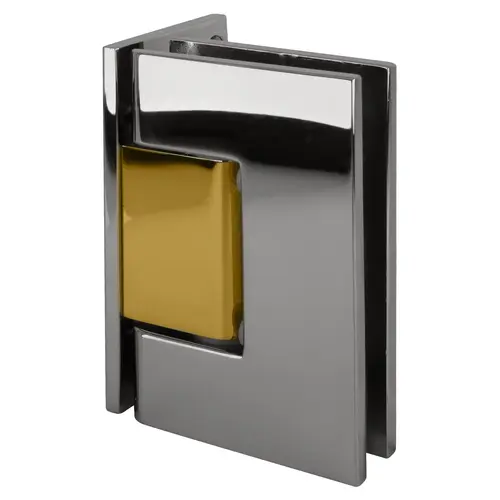

CRL GEN044CBA Wall Mount Offset Back Plate Hinge, Brass Material, 5/16" To 1/2" Glazing Thickness, Chrome with Brass Accents Finish
Item #: GEN044CBA by CR Laurence
Brand: CRL
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from solid brass with stainless steel pins and springs, finished in Chrome with Brass Accents for use in shower hardware systems.
- Designed for 5/16" to 1/2" tempered safety glass, suitable for various wall mount shower door hinge applications.
- Features a wall mount offset back plate design with a depth of 2-3/16", providing a stable connection to bathroom walls.
- Self-centering mechanism engages within 15 degrees of the closed position, with a reversible 5-degree pivot pin for adjustment.
- Supports a maximum door weight of 80 lbs with 2 hinges or 120 lbs with 3 hinges, for doors up to 28" or 32" wide respectively.
- Allows for 90-degree inward and outward door swings, suitable for standard residential or hotel shower door configurations.
- Includes necessary gaskets and screws for installation, requiring specific glass fabrication dimensions for proper mounting.
Height
3-1/2" (89 mm)
Width
1-31/32" (49 mm)
Depth
2-3/16" (56 mm)
Finish
Chrome
Product Overview
The Chrome with Brass Accents Geneva Series Wall Mount Offset Back Plate Hinge is designed for mounting shower doors to walls. Constructed from solid brass with stainless steel pins and springs, this hinge is suitable for 5/16" to 1/2" tempered safety glass. It features a self-centering mechanism that engages within 15 degrees of the closed position and includes a reversible 5-degree pivot pin, allowing for a standard 90-degree closing or a 5-degree tighter closure into the shower interior. The hinge allows for 90-degree inward and outward swings. When using two hinges, it supports a maximum door weight of 80 lbs and a maximum door width of 28". With three hinges, it supports up to 120 lbs and a maximum door width of 32". The hinge has a depth of 2-3/16". Installation requires specific glass fabrication dimensions and gaskets. The Chrome with Brass Accents finish provides a consistent aesthetic for bathroom hardware.
