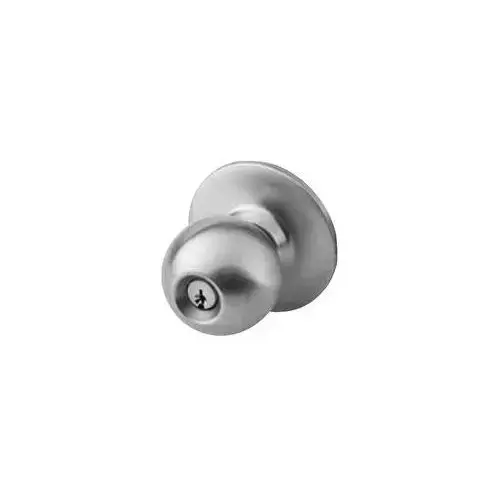

Corbin Russwin CK4351 GRD 630 Global Knob and Wrought Rose Single Cylinder Entry Grade 1 Cylindrical Knob Lock with L4 Keyway Satin Stainless Steel Finish
Item #: CK4351 GRD 630 by Corbin Russwin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Handing Non-handed.
- Door Thickness 1-3/8" (35mm) – 2" (51mm).
- Backset 2-3/4" (70mm) standard.
- Lock Chassis Steel, zinc dichromated for corrosion resistance.
- Front Wrought brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates doors beveled 1/8" (3mm) in 2" (51mm).
- Latchbolt Stainless Steel 1/2" (13mm) throw, 7/8" (22mm) diameter.
- Strike Wrought brass or stainless steel, ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available
- Cylinder Brass, 6-pin, L4 keyway, 0-bitted standard.
Thickness
1-3/8" - 2"
Strike Number
SA118
Package Volume
171
Latch Number
787F66
Color
Satin Stainless Steel
Function
51-Entrance
Latch Type
Deadlocking
ANSI Function
F109
Hand
Not Handed
Grade
ANSI/BHMA Grade 1
Fire Rated
3 Hours {A}
Special Marks
Conventional cylinder, Fire rated 3 Hours {A}
Key(s)
Blank
Strike Width
1-1/4"
Latch Backset Dim
2-3/4"
Cylinder Type
Conventional Cylinder
Lock Face Size
2-1/4" x 1-1/8"
Package Qty
1
Package Height
4"
Screws
Combination
Keying
0 Bitted
Package Width
4.5"
Bolt Protection
1/2"
Color Code
630/US32D
Strike Type
ANSI Curved Lip
Rose/Escutcheon Design
D - Rose
Base Material
Stainless Steel
Keyway
Corbin Russwin L4
Strike Height
4-7/8"
Lever/Knob Design
GR - Global
Package Length
9.5"
Finish
US32D Satin Stainless Steel (630)
Backset
2-3/4 Inch
Finish Description
Satin Stainless Steel
Knob style
GRD-Global
Keyblank Grouping
CRRS-L4-6-1
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Series
CK4200 Series
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Projection
2.2500
Door Thickness
1-3/8" - 2"
Knob Diameter
2.2500
ADA Approved
False
Keying Charges
CCAM
Bore Size
2.1250
Application
Ideal for Demanding; High-Use Commercial; Industrial and Institutional Applications; Including Schools; Hotels; Apartments; Hospitals and nursing homes; Churches; Municipal buildings; Airports; Retail complexes; Offices; Warehouses
Warranty
3 Year Limited
Handle Type
Knob
Rose Diameter
3-1/8 Inch
Latch Throw
1/2 Inch
Keying Type
Keyed Random
Strike Size
4-7/8" x 1-1/4" x 1-1/8"
Cylinder Material
Brass
ADA Compliant
No
Finish Family
Stainless Steel
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA A156.2; UL/cUL Listed
Cylinder Type Used
Conventional
Function Description
Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.
Front Size
2-1/4" x 1-1/8"
Function Family
Entry/Entrance/Office
Latch bolt size
7/8 Inch
Strike Lip
1-1/8 Inch
Product Projection
2-1/4 Inch
Features
Corrosion Resistance; Heavy Wrought Knobs With Steel Liner for Impact Resistance
Manufacturer Parent
Assa Abloy
Latch Corner
Square
Knob/Lever Size
2-1/4 Inch
Latch Bolt Material
Stainless Steel
Knob Style Family
Ball Knob
Sub-Series
CK4351-GRD-630
Lever Knob Design
Global Knob
UL Listing Type
UL and cUL 3 Hour Rated
Dimension
2-1/4" Knob with 2-1/4" Projection and 3-1/8" Rose
Strike Dimension
1-1/4" x 4-7/8"
No of inners
1
Door Range
1-3/4" to 2"
No Of Pins
6 Pin
Finish code
630
Material
Die Cast Zinc
Cross Bore Size
2-1/8" Bore with 5/16" Thru Bolt Holes
Latch Faceplate Dimension
1-1/8" x 2-1/4"
Manufacturer Warranty
Limited 3 Year Warranty
Hazardous Material
No
Product Overview
CK4300 Series Cylindrical Knob Locksets
The CK4300 Series is ideal for demanding, high-use commercial, industrial and institutional applications, including:
- Schools
- Hotels
- Apartments
- Hospitals and nursing homes
- Churches
- Municipal buildings and offices
- Airports
- Retail complexes
- Warehouses
Certification:
Certified and meets A156.2 Series 4000, Grade 1.
Features- Handing- Non-handed.
- Door Thickness - 1-3/8" (35mm) – 2" (51mm).
- Backset- 2-3/4" (70mm) standard.
- Lock Chassis- Steel, zinc dichromated for corrosion resistance.
- Front- Wrought brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates doors beveled 1/8" (3mm) in 2" (51mm).
- Latchbolt- Stainless Steel 1/2" (13mm) throw, 7/8" (22mm) diameter.
- Strike- Wrought brass or stainless steel, ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available
- CylinderBrass, 6-pin, L4 keyway, 0-bitted standard.
- KeyingFeaturesAvailable: Master keying Construction master keying, Visual key control, Concealed key control, Conventional 6-pin, Security, Pyramid Security, Pyramid High Security, Access 3® Patented, Access 3® Security, and Access 3® High Security.
- Keys- Two nickel silver standard.
- Warranty- Three-year limited.
