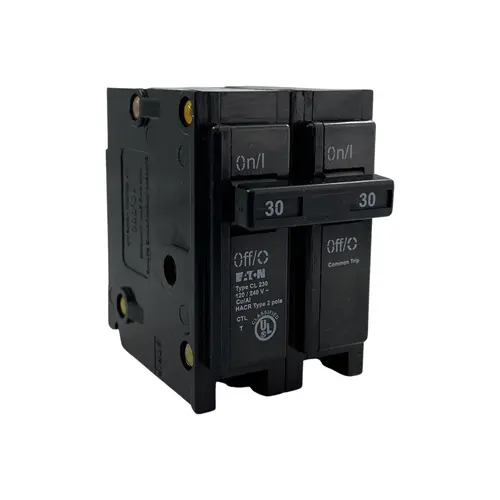

Eaton CL230 Circuit Breaker, Type CL, 30 A, 2 -Pole, 120/240 V, Common Trip, Plug Mounting
Item #: CL230 by Eaton Corporation
UPC #: 786676011655
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Voltage
240
Mounting Type
Plug
Warranty
5 Year Per the Warranty Statement
Certifications
UL
Amperage
30 Amp
Phase
Both
Manufacturer Warranty
15 years
Breaker Type
Double Pole
Certifications and Listings
UL Classified
Circuit Breaker Type
Plug-On
Maximum Amperage
30
Number of Poles
2
Product Depth (in.)
3
Product Height (in.)
3
Product Width (in.)
2
Pack Size
1
UNSPSC
39121601
Interrupt Rating
10 kA
Operating Frequency
50/60 Hz
Trip Type
Common
Nomenclature
CL230 1IN CIR BREAKR 2POLE 30A
Actuator Type
Magnetic Thermal
Current Rating
30 A
Dimensions
3 in L x 2 in W x 3 in H
Type
Type CL
Operating Temperature
60 to 75 deg C
Wire Size
4 to 4 AWG
Number of Phases
1
Material
Thermoplastic
For Use With
CH Loadcenters
Package Quantity
1
UL Listed
Yes
ADA Compliant
No
Maximum Operating Temperature
75 C
Minimum Operating Temperature
60 C
Mount Type
Plug-In
MADE IN THE USA
No
Terminal Connection Type
Screw
Tripping Mechanism
Thermal-Magnetic
Wire Connection Type
Screw Terminals
Assembled Product Depth
2.1 in.
Assembled Product Height
2.5 in.
Assembled Product Width
2 in.
GSA Approved
No
Breaking Capacity
10 kA
AbilityOne
No
TAA/BAA Compliant
Yes
Space Required
1
Product Overview
CIRCUIT BREAKR CL 2P 1IN 2/30A
Specifications:
Specifications:
Dimensions: 3 in L x 2 in W x 3 in H
Suitable for: Square D HOMELINE General Electric Crouse-Hinds Thomas and Betts Murray and ITE/Siemens Load Centers
Wire size range #14 to 4. Type CL replacement breakers, classified as direct replacements by Underwriters Laboratories for Square D Homeline, General Electric, Crouse-Hinds, Thomas and Betts, Murray and ITE/Siemens load centers 120/240 VAC, 10,000 AIC. 1 per pole.
