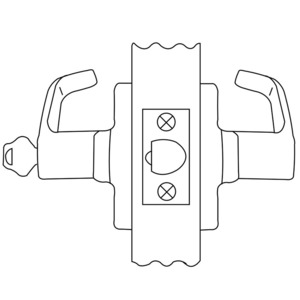

Corbin Russwin CL33905 NZD 626 12AD M92 Cylindrical Lock Satin Chrome

Item #: CL33905 NZD 626 12AD M92 by Corbin Russwin

See reviewsSee reviews
In Stock

$1,105.89

/each
SAVE UP TO 110.59

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Utilizes the CL3300 Series Cylindrical Lockset with LeverRelease™ Mechanism• Self-contained integral solenoid allows installation in modifiedcylindrical prep
  • Minimal power requirements – device is designed to lock orunlock as the situation demands
  • Available in either 12 or 24VAC/VDC
  • Mechanical cylinder override• Fail Safe and Fail Secure mode available
  • Optional M92 Request to Exit (REX) switch
  • ElectroLynx® 8-pin connector

Strike Number

217L13

Package Volume

337.5

Latch Number

686F17

Amp Draw

250mA

Color

Satin Chrome

Case Width

14.5"

Function

905-Fail Secure

Latch Type

Dead Latch (Guarded)

Grade

Grade 1

Fire Rated

3 Hours {A}

Special Marks

Conventional cylinder, Fire rated 3 Hours {A}

Key(s)

Included

Strike Width

1-1/4"

Latch Backset Dim

2-3/4"

Operating Voltage

12VAC/DC

Cylinder Type

Conventional Cylinder

Lock Face Size

2-1/4" x 1-1/8"

Case Length

15.5"

Package Qty

1

Package Height

4.5"

Screws

Combination

Door Thickness

1-3/4" to 2"

Keying

0 Bitted

Case Height

10.5"

Package Width

7.5"

Bolt Protection

1/2"

Case Volume

2359.875

Color Code

626/US26D

Strike Type

ASA

Switch Type

RX

Rose/Escutcheon Design

D - Rose

Base Material

Brass or Bronze

Keyway

L4

Strike Height

4-7/8"

Lever/Knob Design

NZ - Newport

Power

Hard Wired

Package Length

10"

Product Overview

Fail Secure Lever, 12AC/DC, RX, Grade 1, NZD Design, Satin Chrome

For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.

Provides remote locking and unlocking, utilizing the proven CL3300 Series Cylindrical Lockset.

The CL33900 Series is ideal for door control where increased security is necessary at all times, while meeting lifesafety codes.
