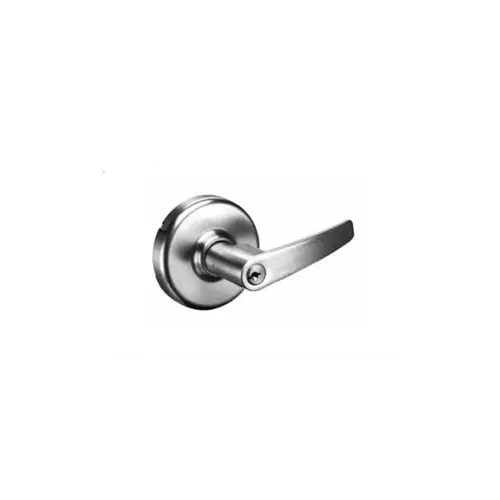

Corbin Russwin CL3555 AZD 625 CL3555 Classroom Lockset, Bright Polished Chrome

Item #: CL3555 AZD 625 by Corbin Russwin

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$636.42

/each
SAVE UP TO 63.64

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Independent return springs to prevent lever sag
  • Through-bolted cylindrical chassis prevents rotation and ensures proper alignment
  • ANSI Grade 1 certification
  • Trim and keying compatible with other Corbin Russwin locksets

Grade

ANSI/BHMA Grade 1

Thickness

1-3/8" - 1-3/4"

Hand

Not Handed

Color

Bright Chrome

Color Code

625/US26

Case Length

15.5"

Keyway

Corbin Russwin L4

Function

55-Classroom

Keying

0 Bitted

Cylinder Type

Conventional Cylinder

Fire Rated

3 Hours {A}

Package Height

4.5"

Package Length

10"

Package Volume

337.5

Package Width

7.5"

ANSI Function

F84

Bolt Protection

1/2"

Case Height

10.5"

Case Volume

2359.875

Case Width

14.5"

Key(s)

Blank

Latch Backset Dim

2-3/4"

Latch Number

600F04

Latch Type

Deadlocking

Lever/Knob Design

AZ - Armstrong

Lock Face Size

2-1/4" x 1-1/8"

Package Qty

1

Rose/Escutcheon Design

D - Rose

Screws

Combination

Special Marks

Conventional cylinder, Fire rated 3 Hours {A}

Strike Height

4-7/8"

Strike Number

SA114

Strike Type

ANSI Curved Lip

Strike Width

1-1/4"

Base Material

Brass or Bronze

Finish

Bright Polished Chrome

Backset

2-3/4 Inch

Finish Description

Bright Polished Chrome

Lever Style

AZD-Armstrong

Keyblank Grouping

CRRS-L4-6-1

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Series

CL3500 Series

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Projection

2.8125

Lever Length

4.0000

Door Thickness

1-3/8" - 1-3/4"

ADA Approved

False

Keying Charges

CCAM

Bore Size

2.1250

Warranty

7 Year Limited

Application

Ideal for Commercial; Institutional and Multifamily Applications Such as Interior Offices; Apartment Complexes; Convalescent and Elderly Care Facilities; Hotels; Restaurants; Retail Centers

Handle Type

Lever

Rose Diameter

3-1/2 Inch

Latch Throw

1/2 Inch

ADA Compliant

YES

Finish Family

Polished Chrome

Keying Type

Keyed Random

Strike Size

4-7/8" x 1-1/4" x 1-1/4"

Cylinder Material

Brass

Standards

ANSI/BHMA A156.2; Meets A117.1 Accessibility Code; UL/cUL Listed

Cylinder Type Used

Conventional

Function Description

Deadlocking latch bolt by levers. Outside knob/lever is locked by key in outside lever. Inside knob/lever is always free.

Front Size

2-1/4" x 1-1/8" x 1"

Function Family

Classroom

Strike Lip

1-1/4 Inch

Product Projection

2-3/16 Inch

Trim Material

Solid Cast Zinc (Lever); Brass (Rose)

Features

Independent Return Springs to Prevent Lever Sag; Through-Bolted Cylindrical Chassis Prevents Rotation and Ensures Proper Alignment; Trim and Keying Compatible with Other Corbin Russwin Locksets

Manufacturer Parent

Assa Abloy

Lever Length-Inches

4 Inch

Latch Corner

Square

Knob/Lever Size

4 Inch

Latch Bolt Material

Chrome Plated Brass

Lever Style Family

Straight Lever

Sub-Series

CL_Cylindrical_Locks_corbin_russwin_234

Door Cross Bore

2.125 Inch

Product Overview
CL3500 SeriesHeavy Duty Lockset

A heavy-duty Grade 1 lever lockset, ideal for commercial, institutional and multifamily applications.

Certification/Compliance: ANSI/BHMA:
  • Designed to meet A156.2 Series 4000, Grade 1
  • Meets A117.1 Accessibility Code
Federal:
  • Meets FF-H-106C
California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)
  • All levers with returns comply; levers return to within 1/2" of door face
UL-cUL:
  • All locks listed for "A" label and lesser class single doors, 4' x 10'. Letter F and UL symbol on latch front indicate listing.
Specifications: Handing:
  • Non-handed
Door Thickness:
  • 1-3/4" (45mm) standard (fits doors 1-3/8" - 1-3/4" (35mm - 45mm))
Backset:
  • 2-3/4" (70mm) standard
Lock Chassis:
  • Steel, zinc dichromated for corrosion resistance
Front:
  • Brass, Bronze or Stainless Steel. 2-1/4" x 1-1/8" (29mm) standard for 2-3/4" (70mm), 3-3/4" (95mm) and 5" (127mm) backset. 2-1/4" x 1" (57mm x 25mm) standard for 2-3/8" (60mm) backset. Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm)
Latchbolt:
  • Brass, chrome plated with 1/2" (13mm) throw.
Auxiliary Latchbolt:
  • Deadlocking latchbolt prevents manipulation when door is closed
Strike:
  • Wrought brass or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center standard
Cylinder:
  • Brass, 6-pin, L4 keyway, 0-bitted standard
Keys:
  • Two nickel-silver standard
Warranty:
  • Seven-year limited
MicroShield®:
  • CL3500 series locks are available with MicroShield® antimicrobial coating. MicroShield is a revolutionary hardware finish coating, using a silver ion based technology, which inhibits the growth of bacteria, algae, yeast, fungus, mold and mildew. MicroShield is non-toxic and lasts for the lifetime of the finish to which it is applied. To order, suffix option code "C".
Keying Features Available:
  • 7-pin
  • Master keying
  • Construction master keying
  • Visual key control
  • Concealed key control
  • Interchangeable core (IC)
  • Security
  • Security IC
  • Access 3® Patented
  • Access 3® Security
  • Access 3® High Security
  • Access 3® Patented IC
  • Access 3® Security IC
  • Access 3® High Security IC
  • Pyramid Security
  • Pyramid Security IC
  • Pyramid High Security
  • Pyramid High Security IC
