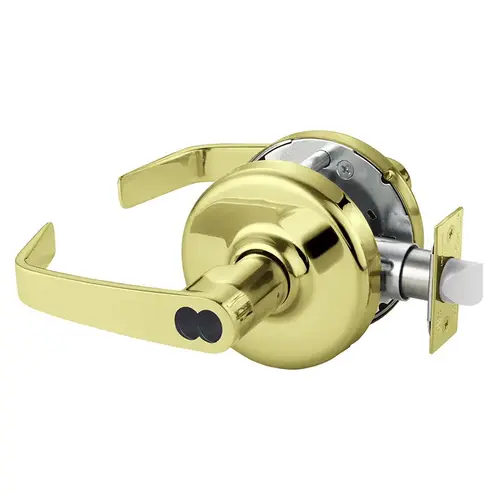

Corbin Russwin CL3861 NZD 605 CL6 Cylindrical Lock Bright Brass
Item #: CL3861 NZD 605 CL6 by Corbin Russwin
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Lever Release™ for vandal resistance
- Solid cast levers
- ANSI Grade 2 certification
- UL 3-hour fire rating
- Independent lever return springs
- Through-bolts on door for solid attachment
- Covers ANSI/DHI door prep A115.18 - 1994 “Spider Cut Out”
Thickness
1-3/8" - 1-3/4"
Strike Number
217L13
Package Volume
337.5
Latch Number
600F10
Color
Bright Brass
Case Width
14.5"
Function
61-Entry or Office
Latch Type
Dead Latch (Guarded)
ANSI Function
F82 - Entry
Hand
Not Handed
Grade
Grade 2
Fire Rated
3 Hours {A}
Special Marks
Full size/large format interchangeable core, Fire rated 3 Hours {A}
Strike Width
1-1/4"
Latch Backset Dim
2-3/4"
Cylinder Type
Corbin Russwin 6-Pin LFIC Less Core
Lock Face Size
2-1/4" x 1-1/8"
Case Length
15.5"
Package Qty
1
Package Height
4.5"
Screws
Combination
Case Height
10.5"
Package Width
7.5"
Bolt Protection
1/2"
Case Volume
2359.875
Color Code
605/US3
Strike Type
ASA
Rose/Escutcheon Design
D - Rose
Base Material
Brass
Strike Height
4-7/8"
Lever/Knob Design
NZ - Newport
Package Length
10"
Product Overview
Entrance Lever, Grade 2, NZD Design, 6-Pin LFIC Prep, Less Core, Bright Brass
An economical, Grade 2 standard-duty lever lockset which provides an outstanding combination of value and performance. ItÍs the ideal lever lockset for standard commercial applications. When used in conjunction with the CL3300 Series Extra Heavy-Duty Grade 1 and the CL3500 Series Heavy-Duty Grade 1 Cylindrical Lever Locksets, the overall cost of many projects may be reduced without compromising functionality and durability. Typical applications
Grade 2 standard-duty lever lockset that provides a combination of value and performance.
The CL3800 Series is ideal for standard commercial applications such as interior offices, closets, multifamily housing, restaurants, and retail complexes.
